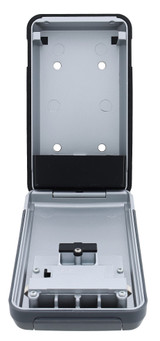

Carbine Wall Mounted Key Safe - Dial Combination with LED (Large)
The Carbine CKS-W-DI-LED-L is a large wall mounted key safe with a 4-dial mechanical combination and LED-illuminated dials. It is mechanically identical to the CKS-W-DI-L, adding one feature: a dedicated Light Activation Button on the front face that illuminates the dial numbers on demand, making the key safe fully usable in low-light and night-time conditions without requiring a torch.
The aluminium alloy body and protective flip cover are unchanged from the standard large model. The 4-dial combination is factory preset at 0-0-0-0 and user-resettable via the internal Reset Button. LED illumination is powered by a CR2032 battery in a separate battery compartment accessed from inside the body - the mechanical combination remains fully operational even if the LED battery is flat.
This is the right choice for installations where night-time access is a regular requirement: a dark driveway, a side gate, an under-eave location with no ambient lighting, or a commercial property with after-hours access. For lit installations, the CKS-W-DI-L (no LED, no battery) is the simpler option.
Key Features
- 4-dial mechanical combination with LED-illuminated dials for low-light access.
- Dedicated Light Activation Button on the front face - press to illuminate on demand.
- Protective flip cover shields dials from weather, dust, and UV.
- Large internal storage cavity: 65 x 29 x 80 mm - suits multiple keys or bulky fobs.
- Aluminium alloy body with ABS dials.
- Factory preset at 0-0-0-0; user-resettable via internal Reset Button.
- Mechanical combination functions normally even with a flat LED battery.
- 48-hour salt spray corrosion resistance tested.
- Permanent wall mount - screw fixings and wall plugs included.
What's In The Box
- 1 x Carbine CKS-W-DI-LED-L wall mounted key safe with integrated flip cover
- Internal key hooks
- Mounting hardware - screws and wall plugs
- Product instructions
Specifications
Battery & LED Power
Suitable Uses
- Properties with after-hours or night-time access requirements - dark driveways, side gates, under-eave mounting locations.
- Short-stay and holiday rentals where guests may arrive at night - see our Airbnb access setup checklist.
- Residential key sharing where low-light usability is a regular consideration.
- Property management and facilities access at locations without reliable ambient lighting.
- Any outdoor installation where the flip cover's dial protection and LED visibility combine to provide the most usable result.
Available Finish Options
Grey
(This Product)
CKS-W-DI-LED-L
Finish selection does not affect functionality, compliance, or performance.
Carbine Key Safe Range
Wall Mounted Models
Shackle Mounted Models
Frequently Asked Questions
The LED illumination requires one CR2032 coin cell battery. It is not included with the standard CKS-W-DI-LED-L. The battery is housed in a separate compartment inside the safe body, accessed by loosening a small screw. Standard CR2032 cells are widely available at supermarkets, hardware stores, and electronics retailers.
No. The CR2032 powers only the LED illumination. The 4-dial mechanical combination operates completely independently of the battery. If the battery is flat or not installed, the dials still turn, the combination still opens the lock, and no access is lost - you simply use it without the light, exactly as you would use the CKS-W-DI-L.
The CKS-W-DI-LED-L arrives factory preset at 0-0-0-0. To set your own code: turn the dials to 0-0-0-0 and open the door, locate the Reset Button inside the body, press and hold it while scrambling the dials to your chosen combination, then release the button. Do not let go of the Reset Button until your new code is fully set. Full illustrated instructions are in the Brochure tab.
Yes. The aluminium alloy body and flip cover are 48-hour salt spray tested for corrosion resistance. The LED and battery compartment are housed inside the protected body cavity and are not directly exposed to weather. For best results in coastal or highly exposed locations, mount under an eave or in a recessed panel where direct rain is minimised. See our notes on coastal key safe maintenance.
The CKS-W-DI-L and CKS-W-DI-LED-L are mechanically identical in body, dimensions, flip cover, capacity, and combination reset method. The sole difference is the LED-illuminated dials and Light Activation Button on this model, which require a CR2032 battery. If your installation is in a well-lit area, the CKS-W-DI-L is the simpler, battery-free choice. If guests or users regularly access the key safe after dark without a nearby light source, the LED model is the practical upgrade.
Additional Information
The CKS-W-DI-LED-L is still a fully mechanical key safe. The LED illuminates the dial markings; it does not control access, store codes electronically, or create any dependency on power. This distinction matters for buyers comparing it with electronic key safes: there are no firmware updates, no pairing requirements, no app, and no lockout from a dead battery. The only maintenance item the LED adds over the CKS-W-DI-L is one CR2032 cell, typically lasting 12 months or more with occasional use.
Mounting hole spacing is 38 mm wide by 70 mm tall (confirmed from instruction diagram). You will need a Pozi/cross-head screwdriver, pencil, spirit level, drill bit, drill, and hammer. Mark the fixing holes from inside the open body before drilling. Carbine recommends scrambling the dials after every use to prevent an observer reading the last-used combination from the dial positions. Terry's team is available for professional installation if required.
If frequent code changes matter as much as low-light access, the CKS-W-BUT-L (10-button model) is faster to re-code and its button layout is also easier to operate by touch in the dark - each button has a distinct raised profile. That said, the dial model's LED is the cleaner solution when the primary concern is simply visibility. See our guide on key safe options for Airbnb hosts for broader context.
Carbine products are backed by Davcor Group Pty Ltd, the Australian manufacturer and owner of the Carbine brand, distributed locally through Lock and Key Co. Warranty periods vary by product category:
- Up to 15 years — mechanical hardware, door hardware, cabinet furniture, utility and window locks
- 10 years — padlocks and mechanical digital locks
- 5 years — cylinders and keys
- 12 months — electronic and digital locks, locksmith tools and supplies
Carbine Key Safe Range
PDF Downloads
What's in the Box - Carbine CKS-W-DI-LED-L
- 1 x Carbine CKS-W-DI-LED-L wall mounted key safe with integrated flip cover
- Internal key hooks
- Mounting hardware - screws and wall plugs
- Product instructions
Carbine CKS-W-DI-LED-L - Instructions & Product Brochure
Carbine Warranty
Carbine is a flagship brand of Davcor Group Pty Ltd (ABN 95 003 562 598) — an Australian manufacturer, designer, and wholesale distributor of residential and commercial locking hardware. Engineered in collaboration with working locksmiths, Carbine products focus on high security, versatility, and ease of installation.
Davcor distributes Carbine through seven specialist divisions, including Lock and Key Co. — Davcor’s dedicated trade distribution arm supplying locksmiths and the security industry across Australia, New Zealand, and beyond. Whether you purchased your Carbine product through Lock and Key Co., another trade channel, or directly through us, the same Davcor warranty applies.
All Carbine products are guaranteed by Davcor Group Pty Ltd to be free from defects in materials and workmanship from the date of original purchase, for the period applicable to the specific product category (refer to the Warranty Period table below). This warranty covers replacement of product only.
