Lockwood 3572DXKO Digital DX Mechanical Keypad Mortice Lock with Key Override - 60mm Backset
At A GlanceAt A Glance
DISPATCHShips in about 12 business days
SPECIAL ORDERNot returnable
PIN Code
Key OverrideThe Lockwood 3572DXKO is a fully mechanical keypad mortice lock with a keyed override cylinder, built for commercial doors that need coded entry without any wiring, batteries or electronics - plus a key path for the people who must always be able to get in. It is the key override member of Lockwood's Mortice Digital DX family at the standard 60mm backset.
The lockset pairs a Lockwood 3572 cylinder mortice lock with the Digital DX keypad on the outside face, and is matched with Lockwood 1800 or 2800 series door furniture on the inside. Enter the code, turn the keypad knob, and the latch retracts; from the inside, the handle opens the door freely at all times with no code required. The override cylinder sits alongside the keypad, so building managers, security staff or emergency services can open the door with a key, independently of the code.
Because the whole mechanism is mechanical, there is nothing to charge, pair or replace. That is exactly why locks like this remain the default choice for plant rooms, staff doors and service corridors that see heavy daily use. If you are new to battery-free keypad locks, our guide What Is a Mechanical Digital Lock? explains how the coding chamber inside works.
View the full range of battery-free keypad locks here: Digital Mechanical Locks Collection
Battery free. Hassle free.
Usually ships in 12 business days
This product is a special order item and is not returnable. It is also handed, so please confirm your door's handing and suitability before ordering - see Handing and Ordering below, or Contact Us if you are not sure.
A mortice lock body and all-mechanical keypad built for frequent daily use on commercial doors, with a keyed override for the doors where lockout is never acceptable. For a plain-English look at what separates commercial-grade keypad locks from light-duty units, see Heavy Duty Commercial Mechanical Digital Locks - including when a key override earns its place.
Key Features
- Fully mechanical keypad lock - no batteries, no wiring, no electronics to fail
- Keyed override cylinder included - authorised users, building managers and emergency services can open the door with a key, independently of the code
- 3572 cylinder mortice lock body with the standard Australian 60mm backset
- Coded entry: press C to clear, enter your code, then turn the keypad knob to retract the latch
- The keypad knob freewheels until a valid code is entered - a clutching action that protects the internal parts if someone forces the knob
- The entered code cancels automatically once the knob is operated, so the door is never left standing on an open code
- Inside lever or knob gives free single-action exit at all times - no code needed to get out
- Stainless steel latch bolt with 19.5mm projection
- Code is set by a mechanical tumbler chamber and re-set at the bench using the supplied code change kit - any 4, 5 or 6 digit code
- Handed at order (left or right hand) to match your door - see Handing and Ordering
- Field-serviceable: replacement keypads and spare code tumblers keep the lock in service for decades
Need a Complete Internal/External Package?If you want a single box that includes both the Digital DX keypad for the outside and a matching internal lever or knob - ready to install with nothing else to source - the Lockwood 002DX deadlatch family is the one to look at. It is also a common choice for
apartment fire doors, where the 002 deadlatch combined with coded entry and free internal exit meets the egress requirements of most tested doorset schedules - always confirm against your building's approved fire door schedule before ordering.
- 002-1LDXSC - Lever inside, door opens inwards
- 002-1KDXSC - Knob inside, door opens inwards
- 002-4LDXSC - Lever inside, door opens outwards
- 002-4KDXSC - Knob inside, door opens outwards
The key choice is which way your door opens (inwards or outwards) and whether you prefer a lever or knob on the inside face. Not sure? Contact Us and we will confirm the right variant for your door.
Decoding Lockwood Model Numbers
Lockwood's DX model numbers look cryptic, but they follow a simple pattern once you know it. Reading a code like 3572DXKOLSC from left to right:
One caveat: the short backset families count differently (3782, 4782, 5782 and 6782 step through 23, 25.4, 30 and 38mm backsets), but the idea is the same - the first digit steps through the backset options. If you need this key override lock at a deeper backset, the KO version is ordered against the 4572 (89mm) or 5572 (127mm) platform - Contact Us to arrange it. Not sure which backset your door has? Our guide to measuring your lock backset shows you in two minutes.
Code Control - How the Code Works and How to Change It
The 3572DXKO ships with a factory-set 4 digit code, which you can change to any 4, 5 or 6 digit code of your own. The code lives in a mechanical tumbler chamber behind the keypad - there is no memory chip and nothing to reset electronically. Because it is a chamber rather than a sequence, each digit can be used once per code and the digits can be pressed in any order; the C button always clears a wrong entry and cannot be part of the code. Our pillar guide explains how the coding chamber works and why the digits are order-independent.
Changing the code is a bench job, and an honest word: it is a fiddly one - the tumblers are small and the sequence matters - but it is entirely doable with the kit and the instructions in front of you. The full procedure is on page 4 of the Lockwood DX Digital Service Manual. We have also written the whole thing up in plain English - see the Lockwood DX section of our code-changing guide, the shared bench method, and the one rule that saves callouts: test the new code five times before you close the door.
One advantage the KO model has over its PIN-only siblings: the override cylinder means a forgotten or mis-set code is an inconvenience, not a lockout - the key still opens the door while you sort the chamber out at the bench.
Access Methods
What's in the Box
- Digital DX keypad access pad
- 3572 cylinder mortice lock body (60mm backset)
- Keyed override cylinder
- Mounting plate and codepad assembly
- Codepad spindle and adaptor components
- Cylinder cam and spindle cam components
- Fixing screws and mounting hardware
- Code change kit
- Installation instructions

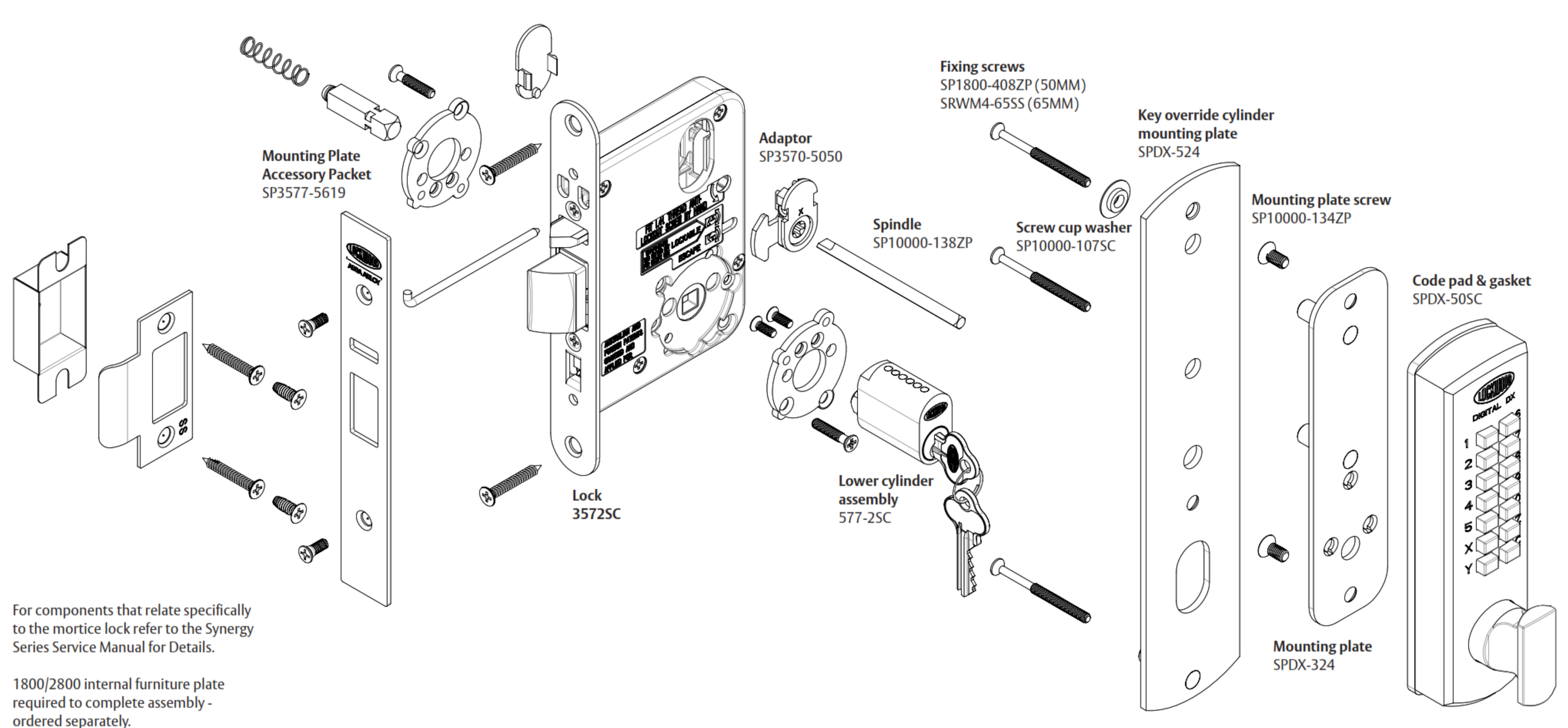

Parts & Components (Key Override)
Suitable Uses
- Commercial access doors where a keyed override path is required alongside coded entry
- Doors covered by a building master key system, or where fire brigade or manager key access must always work
- Office entry points and staff-only doors
- Service corridors, plant rooms and utility rooms
- Replacing an existing 60mm backset mortice lock without re-machining the door
- Any door that needs keypad entry but where batteries, wiring or app dependence are unwanted - browse the full Digital Mechanical Locks range, or read mechanical vs smart locks if you are weighing up both paths
Handing and Ordering
The Lockwood mortice DX platform is not field-reversible: the orderable models are 3572DXKOLSC (left hand) and 3572DXKORSC (right hand), and the correct one must be selected when you order. Stand on the outside (keypad side) of the closed door: if the hinges are on your left, you need the left-hand unit; hinges on your right, the right-hand unit. If you have never had to think about door handing before, our guide Understanding Door Handing in Australia walks through it with diagrams, and explains what goes wrong when the handing is wrong. Still unsure? Send us a photo via Contact Us and we will confirm it for you.

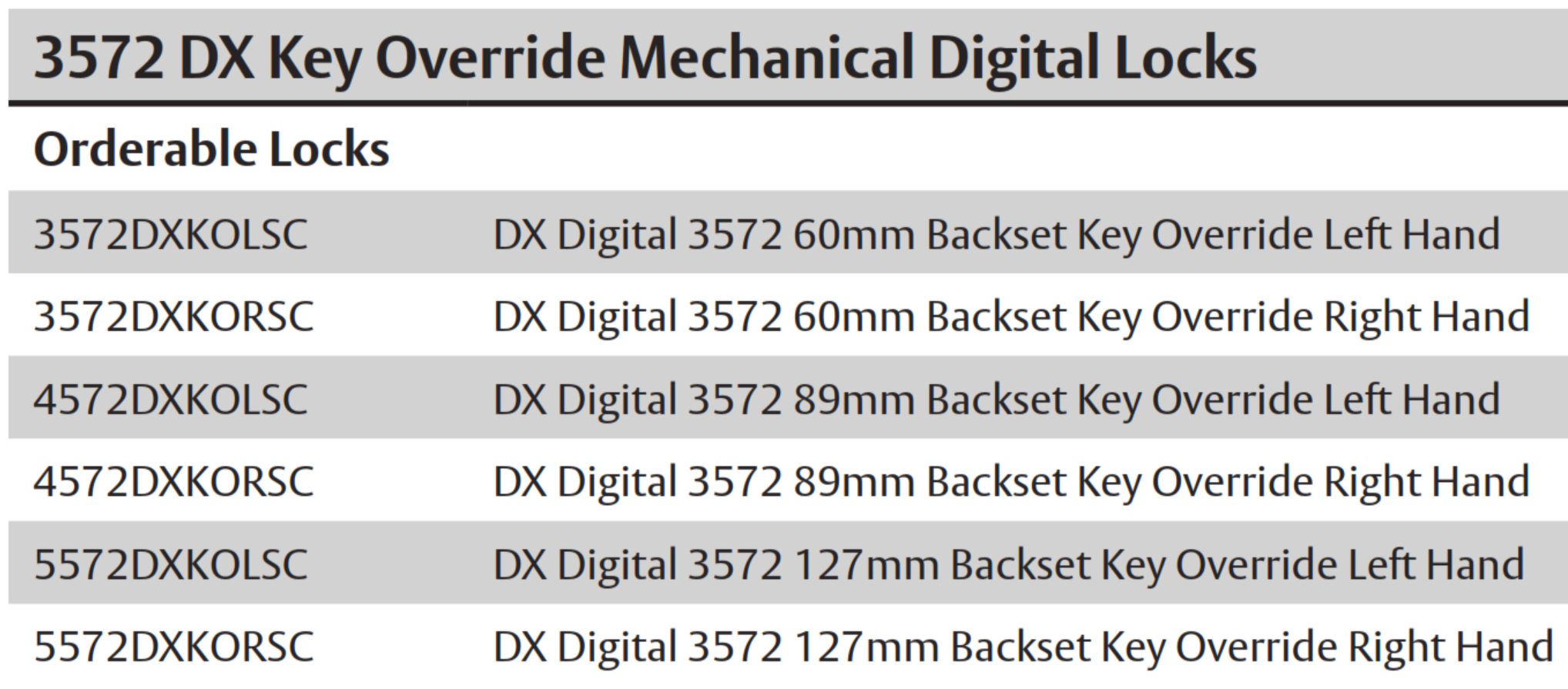

Key Override 3572 / 4572 / 5572 Series Variants
Available Finish Options
Satin Chrome
(This Product)
STK 3572DXKO
Finish selection does not affect functionality, compliance, or performance.
Item Code Family - Lockwood DX Mechanical Keypad Range
This table combines complete Lockwood DX locksets, replacement keypad assemblies and Selector conversion kits. Check carefully whether the product is a full lockset, a keypad-only replacement part, or a kit that requires an existing compatible mortice lock. For an honest comparison of how the Lockwood DX range stacks up against the other battery-free brands we stock, read Lockwood vs Borg vs Carbine.
Full Specifications
Dimensions
Fire Doors and Egress
Mortice DX locksets are commonly specified on commercial fire door assemblies, and the 3572DXKO suits that egress logic: entry is code-controlled (with a keyed path for authorised access), but exit through the inside handle is always free and single-action. Even so, no lock should be described as automatically fire compliant on its own. Fire performance belongs to the complete tested doorset - the door leaf, frame, lock, furniture, cylinder preparation and the installer's compliance - not to the lock in isolation.
Two practical notes for this model: the key override cylinder preparation is part of the tested combination, so it must be assessed with the doorset like everything else; and on Digital DX fire door applications the rubber mounting pad must not be fitted where the manufacturer's instructions require its omission.
Before fitting this lock to a fire door, always confirm suitability against the approved fire door schedule, the door manufacturer's requirements and the complete tested hardware combination. Our guides explain the ground rules: Apartment Fire Doors on the Gold Coast - What Locks Are Actually Compliant? and Fire Door Types and Lock Certification in Australia. You can also browse the locks we list for fire doors in the Fire Door category.
Important: If you are not sure whether your door is a fire door, or what its schedule allows, Contact Us before ordering - and before anyone drills. On older Gold Coast fire doors, read why your locksmith warns you about asbestos before drilling.
Frequently Asked Questions
The keyed cylinder beside the keypad opens the door with a key, independently of the code - so a building manager, security contractor or the fire brigade can always get in even if the code is unknown, forgotten or changed. If your site runs its own keying or master key system and you want to fit your own cylinder, the 3572DXKONCYL is this same lock supplied without the cylinder.
Take the keypad off the door and use the supplied code change kit to reposition the tumblers - a fiddly bench job, but a doable one - the full procedure is on page 4 of the DX Digital Service Manual, and our plain-English walkthrough covers the same steps with the traps to avoid. You can set any 4, 5 or 6 digit code, each digit used once, and the C button is always the clear key. Test the new code five times before you shut the door - and on this model, the override key is your safety net while you work.
Stand on the outside (keypad side) of the closed door. Hinges on your left means the left-hand unit (3572DXKOLSC); hinges on your right means the right-hand unit (3572DXKORSC). This lock is not field-reversible, so getting this right at order time matters - our door handing guide has diagrams, or send us a photo and we will confirm it.
Only with the doorset's paperwork behind you. The 3572DXKO has the right egress behaviour for fire doors - free single-action exit from the inside - and its keyed cylinder is a common fixture on fire door schedules, but fire compliance belongs to the complete tested door assembly (including the cylinder preparation), not the lock alone. Check the approved fire door schedule first, and see our fire door compliance guide or ask us before ordering.
60mm is the standard Australian mortice backset, so for most commercial doors the answer is yes - but measure before you order: centre of the existing keyhole or spindle to the door edge, per our backset measuring guide. If your door measures 127mm, the deep-backset member of this family is the 5572DX (PIN-only; ask us about a KO configuration at that backset).
Additional Information
Lockwood branded products purchased new in Australia are warranted by ASSA ABLOY Australia against defects in materials and workmanship:
- Mechanical components: 25 years from the date of purchase - and because the DX range is entirely mechanical, this clause covers the whole lock
- Satin Chrome plated finish: 10 years
- Keys: 12 months
Lockwood DX Digital Service Manual - jump straight to setting a new code (page 4), the Key Override parts tables (page 10) or the Key Override mounting instructions and drilling templates (page 21)
Lockwood DX Mechanical Digital Range - Catalogue Excerpt (the 002, 530 and Selector families that sit alongside this lock)
Lockwood Warranty - 25 Year Mechanical (PDF)
Lockwood 3572DXKO - FAQ, Setup and Owner's Guide
Everything owners, installers and specifiers ask about the 3572DXKO, in one place. For the wider battery-free picture, start with Chapter 16 of our Buyer's Guide (Mechanical Digital Locks) and the pillar guide What Is a Mechanical Digital Lock?
Codes and Everyday Use
Two ways. By code: press C to clear anything already entered, press your code digits, then turn the keypad knob - the latch retracts, the door opens, and the code cancels automatically as the knob is operated. By key: insert the override key in the cylinder and open the door directly, no code needed. From the inside, the handle always opens the door freely.
That is the clutching mechanism doing its job. Until a valid code is entered, the knob freewheels and is not connected to the latch - so forcing or wrenching it transmits nothing to the lock's internals. Enter the code and the knob engages for one operation. It is one of the reasons these locks survive decades on high-traffic commercial doors.
It is a bench job with small parts, and we will not pretend otherwise: the keypad comes off the door and the code tumblers are repositioned with the supplied kit - fiddly, but well within reach of a patient owner with the instructions open. The factory procedure is on page 4 of the Service Manual; our plain-English version is the Lockwood DX section and bench method of the code-changing guide. And the golden rule: test the new code five times before you close the door - though on this model the override key means even a botched change is recoverable.
Any 4, 5 or 6 digit code, with one mechanical rule: each digit can be used only once per code, because the code lives in a physical tumbler chamber rather than a memory chip. The digits can be pressed in any order, and the C button is always the clear key (it can never be part of the code). The pillar guide explains how the chamber works and why order does not matter.
This is the model where that question has a comfortable answer: use the override key, open the door, take the keypad to the bench and set a fresh code with the kit. No locksmith callout, no drilled lock. On the PIN-only DX models a forgotten code is a bigger nuisance - which is exactly why the KO configuration exists for doors where guaranteed access matters.
The Key Override
Treat it like any other high-authority key: building management, the site security holder, and whoever your fire door schedule or emergency plan nominates. The whole value of the override is that it works when the code path does not - so the key should live somewhere controlled and findable, not on a hook by the door it opens. Our commercial guide covers when key override earns its place on commercial doors.
That is exactly what the no-cylinder variant is for: the 3572DXKONCYL is this same lock supplied without the cylinder, so your locksmith can fit a cylinder pinned to your existing system. If you are buying this 3572DXKO (cylinder included) and want it keyed to suit, talk to us before dispatch - Contact Us with your keying details.
Keys carry their own 12 month warranty term under Lockwood's warranty document - shorter than the 25 year mechanical cover on the lock itself, which is normal for cut keys. Spare and replacement keys are a locksmith service item; if you lose all keys, the code still gets you in and a locksmith can supply a new cylinder or re-pin the existing one.
Ordering, Handing and Variants
Stand on the outside (keypad side) of the closed door: hinges on your left means 3572DXKOLSC, hinges on your right means 3572DXKORSC. The mortice DX platform is handed at order and not field-reversible, so this is the one detail to get right before checkout. Our handing guide covers how to determine handing and what happens when the handing is wrong.
Measure from the centre of the existing spindle or keyhole to the door edge - two minutes with our backset measuring guide settles it. 60mm is the Australian standard and what this 3572DXKO fits. If your door measures 127mm, the family's deep-backset lock is the 5572DX - PIN-only as listed, so ask us about a key override configuration at that backset before ordering. Guidance on where each size turns up is in standard Australian backset sizes.
Same lock, three override configurations: the 3572DX is PIN-only (no cylinder at all); this 3572DXKO includes the keyed override cylinder ready to go; the 3572DXKONCYL is the KO lock supplied without a cylinder for sites fitting their own to suit an existing key system. If nobody will ever need a key, the 3572DX saves you money; if a manager, owner or the fire brigade must always be able to get in, buy KO.
Not as supplied. On the Lockwood mortice DX platform, hold-back is a key-operated option tied to a specific cylinder configuration rather than a button on the keypad. If trading-hours free passage matters to your door, tell us before you order and we will steer you to the right configuration - and read Passage Mode vs Holdback Mode first, including why hold-back is never used on fire doors.
No - the mortice DX locksets are matched with Lockwood 1800 or 2800 series furniture for the inside face, ordered to suit your door. If you want a single box with keypad and internal handle included, that is the 002DX deadlatch family - see the complete package callout on this page for the four variants.
Installation and Door Prep
On a fresh timber door with the manual in hand, a confident DIYer can do it: the Key Override mounting instructions and full-size drilling templates are on pages 21-22 of the Service Manual, covering all three backsets - note the KO preparation includes the cylinder hole, so it differs from the standard DX prep. On a door that already has hardware, a fire door, or anything metal-framed, use a locksmith - the prep tolerances are what make these locks run sweetly for years. Local to the Gold Coast? Terry's installs what we sell.
The 3572DXKO suits doors from 32mm to 50mm thick. Standard Australian commercial doors sit comfortably inside that range; if your door is outside it (very thin aluminium infill, or an unusually thick solid-core leaf), talk to us before ordering rather than after.
Gold Coast apartment fire doors from certain eras can contain asbestos in the core, and drilling one without checking is a genuine health and legal risk - and the KO cylinder preparation means one more hole than the standard DX. Read the three risk windows and what to do next before any holes go in.
Fire Doors and Egress
Its behaviour is right for it: exit through the inside handle is single-action and never needs a code or a key, which is the pattern egress paths demand. The keyed cylinder is on the outside face and does not touch the exit path. What the lock cannot do is make the doorset compliant by itself - that certification belongs to the whole tested assembly. Our commercial guide explains how exit paths are assessed, and the fire door rules are laid out in our fire door compliance guide.
Because printing a rating a doorset does not hold would be doing you a disservice. Fire performance is tested and certified against complete door assemblies - leaf, frame, lock, furniture, cylinder prep and installation together - and it is the approved fire door schedule for your building that says what may go on your door. Bring us the schedule (or a photo of the door tag) and we will give you a straight answer. Background reading: Fire Door Types and Lock Certification in Australia.
Care, Coastal Conditions and Warranty
Wash it. The 25 year mechanical warranty excludes corrosion damage from coastal air, salt spray and high humidity, so near the water a regular fresh-water wipe-down of the keypad, cylinder and furniture - and following Lockwood's published care guidance at lockweb.com.au - is what keeps both the finish and the claim alive. For doors in direct salt spray, compare the salt-spray-rated Carbine CDL7 range and read our honest brand corrosion comparison.

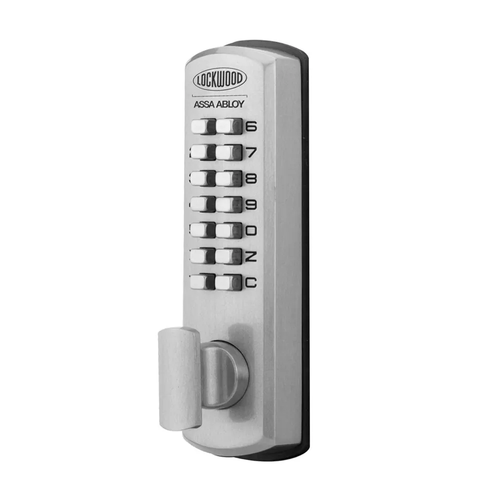

The keypad assembly itself is replaceable (SPDX-50SC and SPDX-20SC), spare code tumblers are stocked, cylinders can be replaced or re-pinned by any locksmith, and the orderable parts tables for the whole Key Override family are on page 10 of the Service Manual. This serviceability is a large part of why mechanical digital locks out-live sealed electronic units.
The DX Range - Related Products, Guides and Chapters
Products: 3572DX (PIN-only, 60mm backset) | 3572DXKONCYL (no cylinder) | 5572DX (127mm backset) | 530DXSC | 530DXSC/PADSX2 (dual keypad) | 002DX deadlatch family | SPDX-50SC spare keypad | SPDX-20SC spare keypad | 3772-DXKITSC | 3772-DXKOKITSC (key override kit) | 3782-DXKITSC | 3782-DXKOKITSC (key override kit) | Browse the whole Digital Mechanical Locks category, the Has Backup Key category or the Lockwood range.
Guides: What Is a Mechanical Digital Lock? | Changing Codes on Mechanical Digital Locks | Lockwood vs Borg vs Carbine | Heavy Duty Commercial Mechanical Digital Locks | Measuring Your Lock Backset | Understanding Door Handing in Australia | Latch vs Bolt Mechanical Digital Locks | Buyer's Guide Chapter 16: Mechanical Digital Locks.
What's in the Box - Lockwood 3572DXKO
- Digital DX keypad access pad (Satin Chrome)
- 3572 cylinder mortice lock body - 60mm backset, handed as ordered
- Keyed override cylinder
- Mounting plate and codepad assembly
- Codepad spindle and adaptor components
- Cylinder cam and spindle cam components
- Fixing screws and mounting hardware
- Code change kit
- Installation instructions

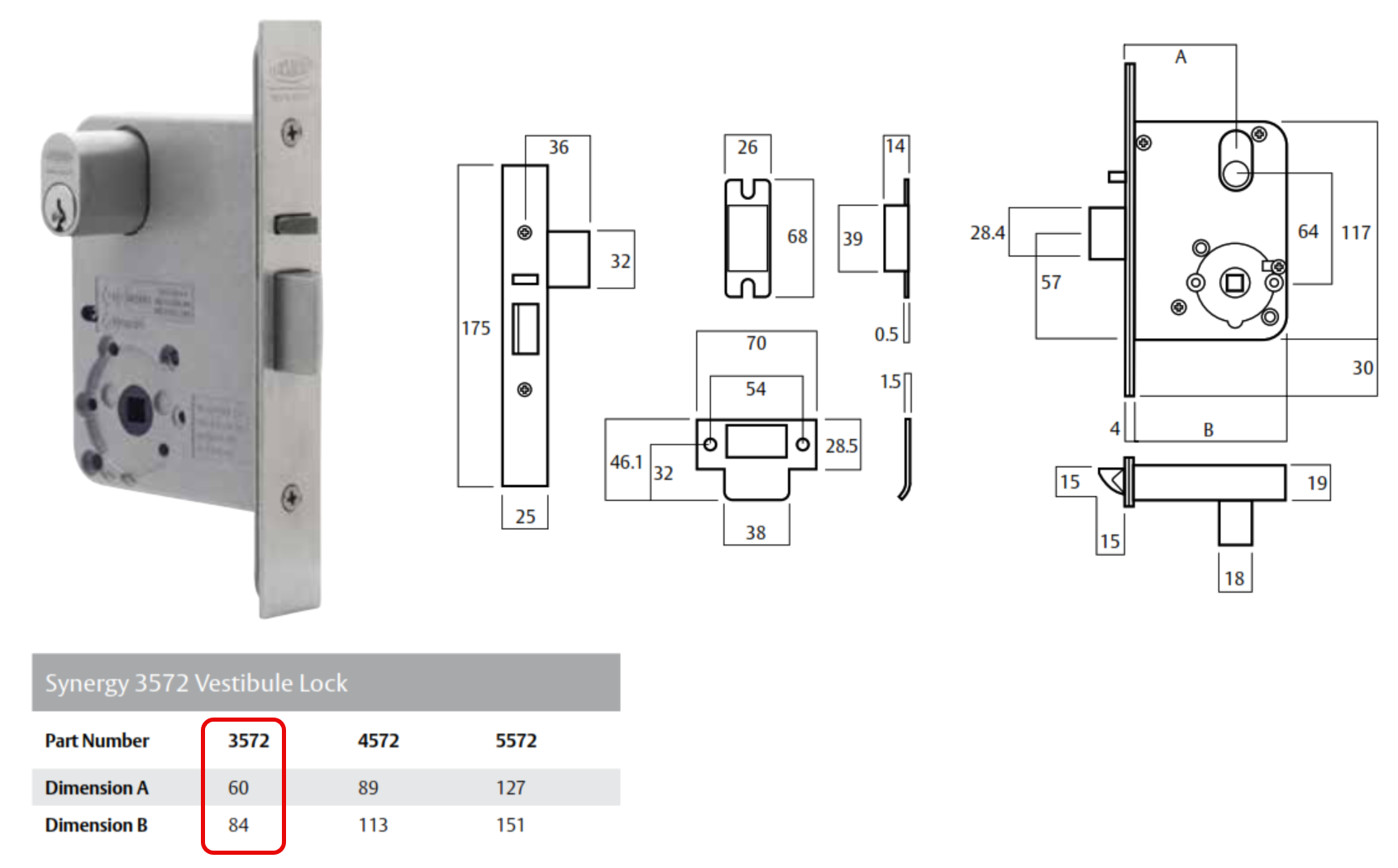

Lockwood 3572DXKO - Dimensions
Lockwood DX Mechanical Digital Range - Product Brochure
The complete mechanical digital section of the Lockwood Keyless Entry Catalogue - the 002, 530 and Selector DX families that sit alongside the 3572DXKO, plus the accessories, kits and ordering procedure for the range. Prefer it as a file? Download the catalogue excerpt (PDF).
Lockwood DX Digital - Schematics and Exploded Views
The manufacturer's schematic and exploded-view sheets for the Lockwood DX digital lock range - useful for identifying parts, understanding the assembly, and ordering spares. The matching orderable parts tables are in the DX Digital Service Manual.
Lockwood DX Digital Service Manual - parts diagrams (Key Override parts on page 10), code change procedure, Key Override mounting instructions and drilling templates (pages 21-22)
Lockwood DX Mechanical Digital Range - Catalogue Excerpt - the 002, 530 and Selector DX families, accessories and ordering procedure
Lockwood Warranty - 25 Year Mechanical - the full warranty terms, limitations and claims process
Lockwood Warranty
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary by product type, with separate cover for mechanical components, electrical and electronic parts, keys, and finishes.
The summary below sets out the standard warranty structure. All warranty claims are handled by Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries. Full terms and exclusions are set out in the official Lockwood warranty document linked at the base of this page.
Warranty Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- PVD and VIVID finishes: typically up to 10 years.
- Symmetry range finishes: typically up to 5 years.
- Decorative finishes (Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants): typically up to 2 years against corrosion.
- Unlacquered brass finishes naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where the required cleaning and maintenance have not been followed.
How to Make a Claim
- Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries with your proof of original purchase.
- Keep the product securely packed and clearly identified, ready for assessment.
- Where a claim is escalated to the manufacturer, ASSA ABLOY may issue a case number before goods are returned.
- ASSA ABLOY assesses the claim and determines repair, replacement with the same or closest equivalent product, or refund of the purchase price.
Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
These manufacturer warranties apply in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. Where a failure does not amount to a major failure, you are entitled to have the goods repaired or replaced.
