Lockwood 3782-DXKOKITSC Key Override DX Digital Conversion Kit for Selector 3782 Short Backset Mortice Locks
At A Glance
PIN Code
Key Override(570E cylinder separate)
The Lockwood 3782-DXKOKITSC is a mechanical Digital DX key override conversion kit for the Lockwood Selector 3782 short backset mortice lock platform. It converts a compatible 3782-series primary lock into a keypad entry system - battery-free, fully mechanical, with a key override cylinder pocket for emergency or authorised key access - all without any wiring or electronics.
Short backset mortice locks are the hardware of choice on commercial aluminium door frames, where a narrow stile leaves no room for a standard 60mm backset. The 3782 kit plugs directly into that world: the DX mechanical coding chamber gives keypad entry, the key override cylinder provision means authorised personnel (building managers, maintenance staff, emergency services) can still enter with a key, and the inside lever handle always turns freely so no-one is ever trapped.
This is not a complete lockset. It is a conversion kit only, designed to pair with a compatible Lockwood Selector 3782 series primary mortice lock - ordered separately. Cylinders and door furniture are also separate items. If you are not certain which combination suits your door, ask us first - a short backset mortice kit is not a casual retrofit and getting the combination wrong is expensive.
View the full range of battery-free mechanical keypad locks here: Digital Mechanical Locks Collection
No batteries. No wiring. No excuses.
This product does not include the primary Selector 3782 mortice lock, the 570E key override cylinder, or Lockwood 4800/5800 series furniture. These must be ordered separately. The Not Included section below lists everything you will need in addition to this kit. If in doubt, contact us before ordering - this is a special-order commercial product.
Usually ships in 12 business days
The Lockwood DX platform is the commercial standard for aluminium door applications across Australia - office entries, back-of-house, stairwells and fire-rated corridors where a standard 60mm backset simply will not fit the stile. The 3782 series short backset mortice is the lock body; this kit converts it to keypad access with retained key entry. Read more about key override in commercial mech-digi applications.
Fire Door Compliance
The 3782-DXKOKITSC is not a standalone fire-rated product. Any fire door claim must relate to the complete tested doorset - lock body, furniture, cylinder, frame details and the approved assembly all affect compliance.
This matters especially on aluminium door applications, where the approved configuration is the only defensible position. Always confirm suitability against the door manufacturer's approval, the lock schedule and the relevant tested configuration before ordering or installing.
Read the broader compliance context: Apartment Fire Doors - What Locks Are Actually Compliant? and the asbestos risk windows before drilling into any apartment fire door.
If you are fitting this kit to a fire door and are not completely certain of the approved combination, contact us before ordering.
Key Features
- Mechanical Digital DX key override conversion kit - no batteries, no wiring, no electronics of any kind
- Designed to pair with compatible Lockwood Selector 3782 short backset mortice locks (23mm, 25.4mm, 30mm or 38mm backset) for commercial aluminium door applications
- Key override cylinder provision for emergency, master key, or authorised personnel access (570E type cylinder ordered separately)
- Inside lever handle operates freely at all times - no-one is ever trapped
- Factory-set 4-digit code, adjustable to any 4, 5 or 6 digit combination using the supplied code change kit
- Buttons can be pressed in any order - the coding chamber does not care about sequence, only which digits appear
- Code clears automatically when the outside knob is released - the lock never sits waiting on a half-entered code
- Anti-tamper clutch knob freewheels under force - load from wrenching or attack is not transferred into the lock mechanism
- Suits 43-46mm door thickness only - the most precise fit specification in the Lockwood DX kit range
- Kit includes: digital codepad, mounting plate (with lower cylinder hole), lower cylinder mounting plate, codepad spindle, spindle cam, latching adaptor, mounting screws and code change kit
- Suits metal doors and hollow aluminium door sections with at least 38mm internal depth
- Satin Chrome finish, matching the broader Lockwood DX commercial range
Need a Complete Internal/External Package?If you want a single box that includes both the Digital DX keypad for the outside and a matching internal lever or knob - ready to install with nothing else to source - the Lockwood 002DX deadlatch family is the one to look at. It is also a common choice for apartment fire doors, where the 002 deadlatch combined with coded entry and free internal exit meets the egress requirements of most tested doorset schedules - always confirm against your building's approved fire door schedule before ordering.
- 002-1LDXSC - Lever inside, door opens inwards
- 002-1KDXSC - Knob inside, door opens inwards
- 002-4LDXSC - Lever inside, door opens outwards
- 002-4KDXSC - Knob inside, door opens outwards
The key choice is which way your door opens (inwards or outwards) and whether you prefer a lever or knob on the inside face. Not sure? Contact Us and we will confirm the right variant for your door.
No electronics, no batteries, no wiring. For the full picture on what mechanical digital access control is and where it fits - including the honest trade-offs against smart locks - see mechanical vs smart lock comparison and the limitations every buyer should know.
Compatibility
The 3782-DXKOKITSC pairs with Lockwood Selector 3782-series short backset mortice locks only. The kit is machined to the geometry of the 3782 platform - it will not fit the 3772-series standard backset mortice locks, the 530 tubular deadlatch or the 002 deadlatch. If your door carries a different Lockwood mortice lock, see the Item Code Family table for the correct kit, or ask us.
Decoding Lockwood Codes - Locks and Kits
Lockwood's model numbers are structured, and reading them correctly is the fastest way to avoid ordering the wrong combination. The canonical Lockwood DX decoder covers the full scheme; the 3782 kit family specifically works like this:
Note: you specify the kit once (3782-DXKOKITSC) and then specify which primary lock you need by its backset (3782SS, 4782SS, 5782SS or 6782SS). The kit is the same regardless of which primary lock backset you choose. See the ordering procedure (catalogue excerpt page 15) for the formal specification format.
Code Control
To enter: press the C button first, enter your code digits, then turn the outside knob. The code clears automatically when the knob is released. Inside, the lever handle operates freely at all times - there is no code required from the inside.
The kit ships with a 4-digit factory-set code and a code change kit. You can set any code of 4, 5 or 6 digits. The coding chamber works on the any-order principle - the lock checks which buttons were pressed, not the order in which you pressed them. A code of 1-3-5 opens whether you press 1 then 3 then 5, or 3 then 5 then 1. This means a 6-digit code from the digits 1, 2, 3, 4, 5, X can be entered in any sequence - the chamber either sees those digits or it does not.
Recoding uses the code change tumblers at the workbench - not an on-door procedure. Set the code before installation, test it five times, then fit the unit. The full DX bench recode method is at #lockwood-dx in the Changing Codes guide, with the common bench traps to avoid listed immediately after. The Service Manual procedure is at page 4 of the DX Digital Service Manual.
Access Methods
What's in the Box
- Digital codepad (external)
- Mounting plate with lower cylinder hole
- Lower cylinder mounting plate
- Codepad spindle
- Spindle cam
- Latching adaptor
- Associated mounting screws
- Code change kit (supplied for initial code setting)
The full kit contents and dimensioned assembly drawings are on page 19 of the catalogue excerpt and in the mounting instructions PDF.
Not Included - Must Be Ordered Separately
- Primary Lockwood Selector 3782-series mortice lock - specify 3782SS (23mm), 4782SS (25.4mm), 5782SS (30mm) or 6782SS (38mm) by required backset
- 570E type key override cylinder - the lower cylinder that enables key entry; must be ordered and keyed to suit the application (master keying, individual change keys, etc.)
- Internal cylinder - for holdback applications only (if a key-operated holdback function is required)
- Lockwood 4800 or 5800 series door furniture - lever handles and roses for both sides of the door
- Lipped strike - if the door frame requires one; see the 3780 Series lipped strikes (catalogue page 21)
- Cylinder keying services - if master keying or restricted key systems are required
Suitable Uses
- Commercial aluminium door applications where the stile width requires a short backset mortice lock rather than a standard 60mm deadlatch or entrance set
- Office entries, stairwells, back-of-house and plant room doors that need keypad access with retained key entry for building managers or maintenance staff
- Sites where a single mechanical code is an acceptable access control method and electronic locking is not desired or practical
- Doors where the facility manager needs a key override for emergency access or audit without depending on batteries or network connectivity
- Holdback applications (with an additional internal cylinder) where a door needs to be held open by key and released by code
Available Finish Options
Satin Chrome
(This Product)
STK 3782-DXKOKITSC
Finish selection does not affect functionality, compliance, or performance.
Item Code Family - Lockwood Selector 3782 DX Digital Range
The kit (3782-DXKOKITSC) is ordered once. The primary lock (3782SS through 6782SS) is ordered separately by the backset your door frame requires. Contact us if you are not certain which combination suits your application.
Full Specifications
Dimensions
Frequently Asked Questions
Does this kit include the mortice lock body?No. The 3782-DXKOKITSC is a conversion kit only. You must order the compatible Selector 3782 primary mortice lock separately - specify it by the backset your door requires: 3782SS (23mm), 4782SS (25.4mm), 5782SS (30mm) or 6782SS (38mm). The catalogue excerpt has the formal specification format on page 15.
Does it include the key override cylinder?No. The 570E type key override cylinder must be ordered and keyed separately. If master keying is required across the site, the cylinder is the component that needs to be specified into the master key system - the kit just provides the pocket and mounting plate for it.
What is the difference between the 3782-DXKITSC and the 3782-DXKOKITSC?The 3782-DXKITSC is the keypad-only kit without key override. It suits a wider door range (32-50mm) and is simpler to specify. The 3782-DXKOKITSC (this product) adds the lower cylinder mounting plate, cylinder pocket and spindle cam that enable key override - but the kit only suits 43-46mm doors. If your door is outside that range and you need key override, contact us.
How do I change the code?The factory-set code can be changed at the workbench using the supplied code change kit. Set the new code before installation, test it five times with the door open, then fit the unit. Never recode a live door until the new code is confirmed working. The full DX bench method is at #bench-method and common pitfalls at #bench-traps in the Changing Codes guide.
Can this kit be used on a fire door?Not independently - fire door compliance depends on the complete tested doorset assembly, not the kit alone. The primary mortice lock, furniture, cylinder, frame details and the door manufacturer's tested configuration all contribute. See the fire door compliance context and confirm the approved combination with the door manufacturer before ordering.
Why does the kit only suit 43-46mm doors?The geometry of the key override cylinder provision, the spindle cam and the mounting arrangement in the 3782-DXKOKITSC are machined for that door range specifically. The non-KO kit (3782-DXKITSC) suits 32-50mm because it does not carry the additional cylinder components. If your door is thicker or thinner and you need key override, ask us - there may be a different lock platform that suits.
The knob freewheels when I try to turn it. Is it faulty?No - this is the clutch mechanism working correctly. The outside knob freewheels under any load until a valid code is entered. This protects the lock body from forced entry and wrenching attacks. Enter the code first, then turn the knob.
Additional Information
Lockwood branded products purchased new in Australia from authorised resellers carry a 25-year warranty on mechanical components against defects in materials and workmanship. This kit is entirely mechanical, so the 25-year term applies to the codepad assembly and all kit components.
Exclusions: corrosion and cosmetic finish degradation are excluded from the mechanical warranty - this is relevant on exposed coastal and high-humidity installations. Normal wear and tear, misuse, unauthorised modification, and labour or freight costs are also excluded. Batteries are excluded (no batteries in this product).
Download the Lockwood 25 Year Mechanical Warranty (PDF) | View Official Lockwood Warranty | Phone: 1300 WARRANTY (1300 927 726)
This warranty operates alongside rights available under the Australian Consumer Law.
Lockwood DX Mechanical Digital Range - Catalogue Excerpt - includes the 3782 Short Backset DX and Key Override DX sections (pages 11-16), kit contents drawings (page 19) and lipped strike options (page 21)
3782 Key Override DX Digital Kit Mounting Instructions - full installation procedure for the 3782-DXKOKITSC
Lockwood DX Digital Service Manual - code change procedure, parts diagrams and service information
Lockwood Warranty - 25 Year Mechanical - full warranty terms and claims process
Lockwood 3782-DXKOKITSC - FAQ, Specification and Owner's Guide
Which locks does the 3782-DXKOKITSC suit?It suits Lockwood Selector 3782-series short backset mortice locks only - 3782SS (23mm), 4782SS (25.4mm), 5782SS (30mm) or 6782SS (38mm). The kit is machined to that platform's geometry and will not fit the 3772 standard backset series, the 530 tubular deadlatch or the 002 deadlatch. For the 3772 platform with key override, the equivalent kit is the 3772-DXKOKITSC.
See pages 14-16 of the catalogue excerpt for the 3782 Key Override DX product details and ordering note.
Why does the key override kit only suit 43-46mm doors when the non-KO kit suits 32-50mm?The key override components - the lower cylinder mounting plate, spindle cam and cylinder pocket - are precision-machined to the 43-46mm door range. The standard DX kit (3782-DXKITSC) does not carry these additional components, which is why it covers a wider door range. If your door is outside 43-46mm and you need key override, contact us to discuss options.
Which cylinder do I order for the key override?A 570E type cylinder is required. The cylinder is ordered separately and must be keyed to suit the site - if master keying across multiple cylinders is required, it needs to be specified into the master key system at the cylinder order stage. The kit provides the pocket, mounting plate and cam; the cylinder itself is not included. Ask us about cylinder supply and keying.
How do I set my own code?Using the code change tumblers at the workbench before installation. The DX bench recode method takes about 30 minutes the first time and 5-10 minutes with practice. Set the code, test it five times, then fit the unit. The full procedure is at #bench-method and the common pitfalls at #bench-traps in the Changing Codes guide. The Service Manual procedure is at page 4 of the DX Digital Service Manual.
If you need spare tumblers or code change keys, they are stocked under SPDX-42 (red) and SPDX-43 (blue).
Can this be used on fire doors and do I need to check for asbestos before drilling?Fire door suitability depends on the complete tested doorset assembly, not this kit alone. Confirm with the door manufacturer that the 3782 lock body and this kit appear in an approved tested configuration before ordering. Read the broader fire door compliance context: Apartment Fire Doors - What Locks Are Compliant?
On older apartment fire doors, asbestos-containing core materials are a real possibility. The three asbestos risk windows should be checked before any drilling begins.
What backset should I specify for an open-in door?The 38mm backset (6782SS primary lock) is generally recommended for open-in aluminium doors because it provides codepad clearance from the door stop without machining in most cases. The 23mm, 25.4mm and 30mm backset options may require door stop machining to clear the codepad on open-in applications. Read about short backset options and clearance requirements in the gate and narrow frame guide.
Is this a good alternative to a smart lock for a commercial door?It depends on the requirements. This kit gives you battery-free keypad access with key override - which means no connectivity dependencies, no battery management, and key entry when the code is forgotten or unavailable. Those are real advantages for back-of-house, plant rooms and building manager access. The honest limitations are: one shared code, no audit trail, and code changes take 30 minutes at the workbench.
If individual user codes, time-based access or an audit trail are requirements, a smart lock system is better suited. The mechanical vs smart comparison covers this in full.
Kit variants: 3782-DXKITSC (no key override, wider door range) - 3772-DXKOKITSC (standard backset platform, key override)
Spare tumblers: SPDX-42 red tumblers - SPDX-43 blue tumblers
Related mortice locksets: Lockwood 3572DX (standard 60mm backset DX mortice) - Lockwood 3572DXKO (60mm with key override)
Guides: Changing Codes on Mechanical Digital Locks - Key Override in Commercial Applications - How Mechanical Digital Locks Work - Ch 16: Commercial Mech-Digi
Lockwood DX Mechanical Digital Locks - Real Installations

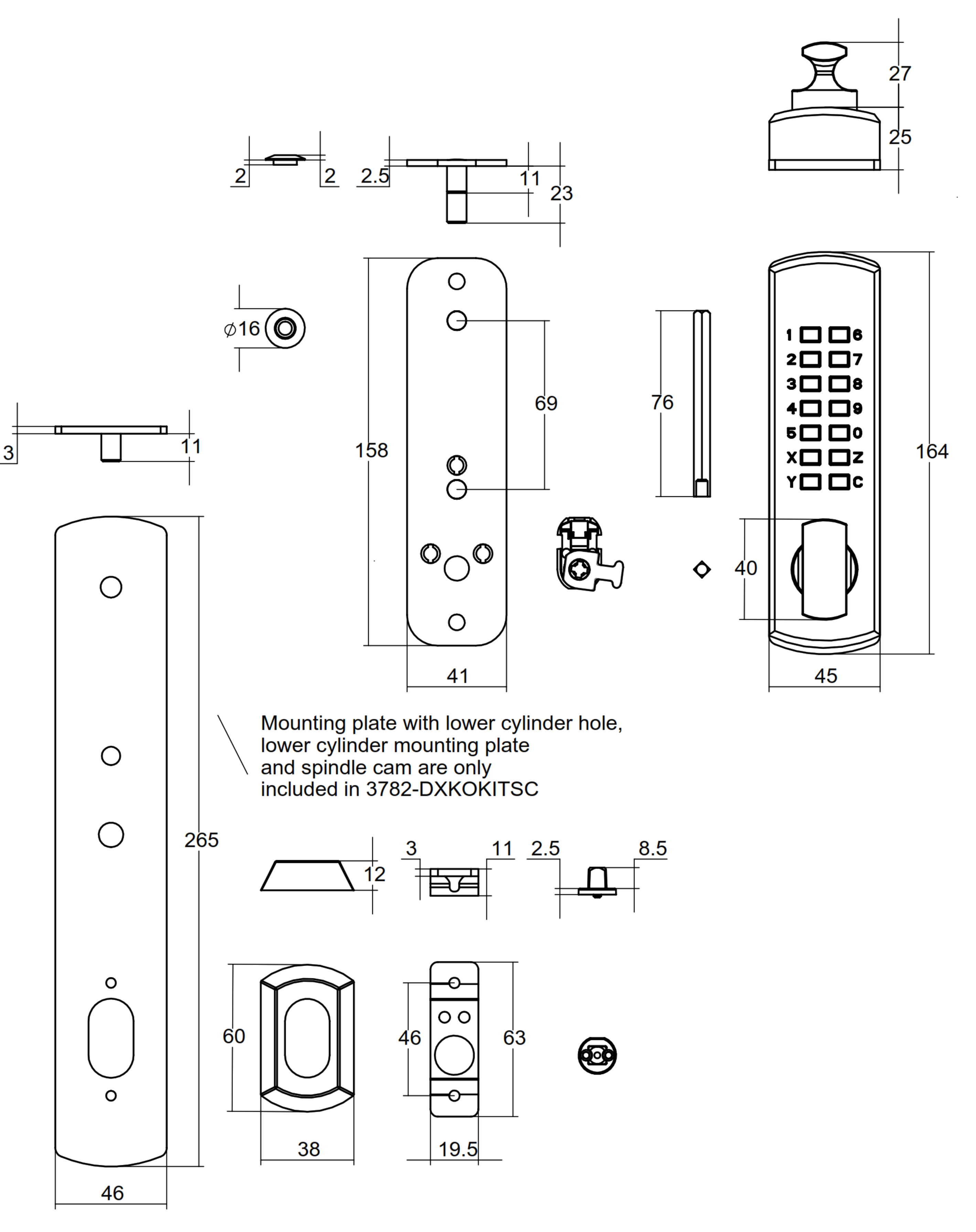

Lockwood 3782-DXKOKITSC - Dimensions
