Carbine CEL-3IN1 Digital Lever Lock with RFID and Key Override - Matte Black Kit with Batteries

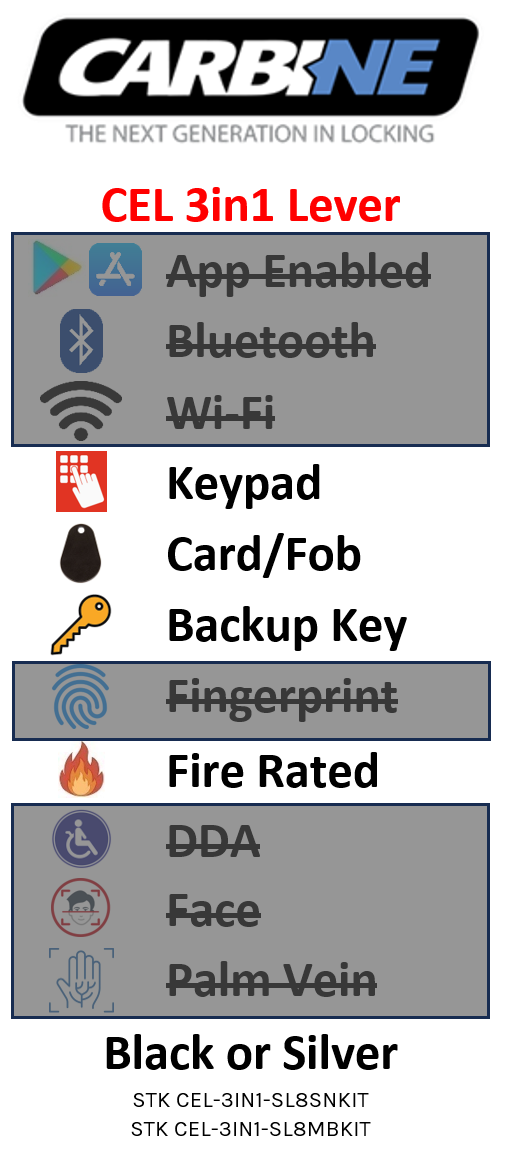

At A Glance
At A Glance
DISPATCHSame Day Before 11am
PIN Code
RFID Card
NFC Phone
Mechanical Key
BluetoothNot Available
FingerprintNot Available
The Carbine CEL-3IN1-SL8MBKIT is a three-credential digital lever lock providing touchscreen PIN code, RFID/NFC access, and mechanical key override. It fits into a standard 54mm lockset hole with no additional drilling, suits door thicknesses of 35-51mm, and includes a 60-70mm adjustable tubular latch. This kit includes 4 x AA Duracell Procell batteries.
The lock accepts PIN codes (4-8 digits), RFID cards, FOBs, wristbands, and most Mifare 13.56MHz NFC-enabled smartphones. Up to 25 user codes and 25 RFID credentials are stored locally in the lock - no hub, gateway, or internet connection required for any access function. A guiding code feature allows false digits to be entered before the real PIN to prevent shoulder surfing. Double authorisation mode (card plus code simultaneously) is also supported.
The CEL-3IN1 leverset is fire rated on E-Core and Pyropanel Maxi Pandor door assemblies (both at FRL -/60/30) and is fitted with an NCC-compliant SL8-style lever. A Satin Nickel variant (CEL-3IN1-SL8-SNKIT) is also available. For an upgraded model with 100-credential capacity and Firecore fire certification, see the Carbine CEL2-3IN1-SL8SNKIT.
Estimated Dispatch
Usually ships same day if ordered before 11am AEST (excludes weekends and Queensland public holidays).
Usually ships same day if ordered before 11am AEST (excludes weekends and Queensland public holidays).
Fire Rated - AS1530.4:2014 (Leverset Only) - FRL -/60/30
The CEL-3IN1-SL8 leverset is certified for use on two door core types, both at FRL -/60/30 (60 minutes integrity, 30 minutes insulation):
- E-Core doorsets - Jensen Hughes Report FAS220275 (formerly Warringtonfire), valid to 30/11/2027
- Pyropanel Maxi Pandor doorsets - Warringtonfire Report FRT220272, valid to 28/09/2028
Fire certification is door-core-specific - always confirm your exact door core type before specifying. The deadbolt variant is not fire rated. See: Fire door types & certification · Fire rating certificates · Buyers Guide Ch05: Fire Door Smart Locks · Ch11: AS1905.1 explained
The CEL-3IN1-SL8 leverset is certified for use on two door core types, both at FRL -/60/30 (60 minutes integrity, 30 minutes insulation):
- E-Core doorsets - Jensen Hughes Report FAS220275 (formerly Warringtonfire), valid to 30/11/2027
- Pyropanel Maxi Pandor doorsets - Warringtonfire Report FRT220272, valid to 28/09/2028
Fire certification is door-core-specific - always confirm your exact door core type before specifying. The deadbolt variant is not fire rated. See: Fire door types & certification · Fire rating certificates · Buyers Guide Ch05: Fire Door Smart Locks · Ch11: AS1905.1 explained
Available Finish Options
Matte Black
(This Product)
CEL-3IN1-SL8MBKIT
Finish selection does not affect functionality, compliance, or performance.
Key Features
- Three access methods: touchscreen PIN code, RFID/NFC credential, and mechanical key override - all validated locally with no internet required. See: Buyers Guide Ch03: RFID access explained · PIN access explained
- Stores 1 programming code, up to 25 user PIN codes, and up to 25 RFID credentials.
- Works with RFID cards, FOBs, wristbands, stickers, and most Mifare 13.56MHz NFC-enabled smartphones.
- Guiding code support - enter additional false digits before your real PIN to prevent code identification from wear patterns or shoulder surfing.
- Double authorisation mode requires card and PIN code simultaneously for higher-security applications.
- PIN codes from 4 to 8 digits; 4 additional single-use access codes (4 digits each).
- Vacation mode disables all user credentials without deleting them.
- Passage mode holds the latch retracted (hold SET for 1 second).
- Auto-lock timer configurable from 5 to 99 seconds (default: off).
- Fire rated on E-Core and Pyropanel Maxi Pandor fire door assemblies to AS1530.4:2014 - FRL -/60/30 on both core types (leverset only, not deadbolt).
- IP54 rated - suitable for sheltered outdoor positions with occasional water splash; not suitable for fully exposed or rain-facing positions.
- NCC-compliant SL8-style lever.
- Fits standard 54mm lockset hole with no additional drilling required.
- Suits door thicknesses of 35-51mm; backset 60-70mm adjustable.
- C4 keyway, 6-pin PD-style cylinder, supplied keyed to a 5-pin key.
- Low battery warning with visual and audible indicators before full depletion.
- Volume control for keypad sounds (on/off).
Access Methods
Suitable Uses
- Residential entry and internal doors requiring keypad and RFID credential access
- Short-stay and Airbnb rental properties - issue unique codes to each guest for their stay, delete at checkout, no key handover needed. See: Airbnb smart locks in Australia - do you really need WiFi? and Buyers Guide Ch07: Airbnb & Short-Stay Rentals
- Small to medium business access control - staff codes, contractor and tradie access, cleaning crew credentials
- E-Core fire-rated door assemblies (leverset variant, FRL -/60/30, Jensen Hughes FAS220275). See: Buyers Guide Ch05: Fire door core types · Where fire doors are required in Queensland
- Aluminium pedestrian gates and aluminium-framed doors - 35-51mm door thickness. Note: always check clearance between the main door and any adjacent screen. See: Ch02: Screen door clearance · How to measure that clearance
- Internal access control on commercial and community facility doors. See: Ch04: Door type compatibility matrix
- Properties requiring NCC-compliant lever hardware
Not sure if this lock suits your door type? See Buyers Guide Ch02: Measuring Your Door for a full door-type matrix, or browse the full smart lock range.
What's in the Box
- 1 x exterior electronic module with touchscreen keypad and SL8 Matte Black lever
- 1 x interior module with SL8 Matte Black lever
- 1 x tubular latch (60-70mm adjustable backset)
- 2 x RFID key cards
- 2 x mechanical keys (C4 keyway)
- 4 x AA Duracell Procell batteries
- 1 x installation guide
- 1 x installation template
- Fixing screws and hardware
RFID and NFC Compatibility
The CEL-3IN1 operates on 13.56MHz Mifare NFC. It is compatible with RFID cards, FOBs, wristbands, and stickers. Most NFC-enabled Android phones with Mifare support will also work, however compatibility varies by phone manufacturer and model. We strongly recommend testing your specific phone before installation. If your phone is not compatible, Mifare RFID stickers are available to adhere to the back of your device and function as a physical credential. Carbine's own compatibility sheet confirms that any MIFARE card (13.56MHz, ISO14443 Type A) will work, including Australian transit cards such as the Opal, Go card, myki, SmartRider, metroCard, MyWay and Green Card - but EMV payment chips (ISO14443 Type B, for example VISA payWave and Mastercard PayPass) will not, and only original Carbine credentials are guaranteed. See: Carbine CEL 3in1 RFID Application List (PDF) · Buyers Guide Ch03: RFID access methods · Browse all RFID cards, fobs and tags
The CEL-3IN1 operates on 13.56MHz Mifare NFC. It is compatible with RFID cards, FOBs, wristbands, and stickers. Most NFC-enabled Android phones with Mifare support will also work, however compatibility varies by phone manufacturer and model. We strongly recommend testing your specific phone before installation. If your phone is not compatible, Mifare RFID stickers are available to adhere to the back of your device and function as a physical credential. Carbine's own compatibility sheet confirms that any MIFARE card (13.56MHz, ISO14443 Type A) will work, including Australian transit cards such as the Opal, Go card, myki, SmartRider, metroCard, MyWay and Green Card - but EMV payment chips (ISO14443 Type B, for example VISA payWave and Mastercard PayPass) will not, and only original Carbine credentials are guaranteed. See: Carbine CEL 3in1 RFID Application List (PDF) · Buyers Guide Ch03: RFID access methods · Browse all RFID cards, fobs and tags
Carbine CEL / CEL2 / CDL - Complete Product Family
CEL2-BT deadbolt variant: RFID is not compatible - Bluetooth and PIN only. CDL2 models use a membrane keypad (not touchscreen) and do not support RFID. All KIT numbers include batteries. For a full model comparison see: Carbine CEL & CDL Digital Lock Range - Complete Buyer's Guide · How to choose the right model · Browse the full Carbine range
Full Specifications
Dimensions
Manufacturer dimensional drawing for the Carbine CEL-3IN1-SL8MBKIT. Exterior: 159.5mm H x 73mm W x 28mm D. Interior: 72.9mm W. Backset 60-70mm adjustable. Door thickness 35-51mm. Latch throw 12mm.
Battery, Power & Backup Access
- Powered by 4 x AA alkaline batteries. Duracell Procell batteries are recommended - do not use lithium or rechargeable (NiMH) batteries.
- Battery life is approximately 5,000 openings. Actual life depends on usage frequency, ambient temperature, and battery brand. High-use properties (Airbnb, small business) will see faster battery turnover than low-traffic residential doors. See: The realities of electronic door locks - battery life
- Low battery warning is provided via LED and audible indicators before full depletion - typically with several days of continued use remaining.
- Mechanical key override provides physical backup entry at all times using the included C4 cylinder keys - always keep a key stored securely off-site. See: Storing the override key outside the house · What to do when the battery dies
- This KIT version includes batteries. Non-KIT variants (CEL-3IN1-SL8SN / CEL-3IN1-SL8MB) do not include batteries.
Related: How long do digital door locks last? - lifespan, installation quality, and Queensland conditions · Ch13: Power & battery questions
Frequently Asked Questions
What is the difference between the CEL-3IN1 and the CEL2-3IN1?
The CEL2 is the next generation of the CEL-3IN1. It uses the same physical footprint and fits the same 54mm hole, but includes an improved touchscreen and motor, a lower-profile escutcheon, and expanded credential capacity of 100 user codes or RFID connections (up from 25 on the CEL-3IN1). The CEL2-3IN1 leverset also carries Firecore certification allowing up to -/120/30 on TVC40 doorsets. Retrofit plates are available for replacing CEL-3IN1 installations with CEL2 without re-drilling the door. See the full comparison: Carbine CEL & CDL Buyer's Guide - CEL-3IN1 models
The CEL2 is the next generation of the CEL-3IN1. It uses the same physical footprint and fits the same 54mm hole, but includes an improved touchscreen and motor, a lower-profile escutcheon, and expanded credential capacity of 100 user codes or RFID connections (up from 25 on the CEL-3IN1). The CEL2-3IN1 leverset also carries Firecore certification allowing up to -/120/30 on TVC40 doorsets. Retrofit plates are available for replacing CEL-3IN1 installations with CEL2 without re-drilling the door. See the full comparison: Carbine CEL & CDL Buyer's Guide - CEL-3IN1 models
Will my smartphone work with the RFID function?
The lock uses 13.56MHz Mifare NFC. Most modern Android phones with NFC enabled will work when held near the reader. iPhone compatibility is more limited due to iOS background NFC reading constraints depending on the iOS version. We strongly recommend testing your specific phone model before purchasing or installing. If your phone is not compatible, Mifare RFID stickers are available that adhere to the back of your device and function as a physical credential - this is the most reliable fallback solution. See: Buyers Guide Ch03: RFID access methods · Carbine's full RFID Application List (PDF)
The lock uses 13.56MHz Mifare NFC. Most modern Android phones with NFC enabled will work when held near the reader. iPhone compatibility is more limited due to iOS background NFC reading constraints depending on the iOS version. We strongly recommend testing your specific phone model before purchasing or installing. If your phone is not compatible, Mifare RFID stickers are available that adhere to the back of your device and function as a physical credential - this is the most reliable fallback solution. See: Buyers Guide Ch03: RFID access methods · Carbine's full RFID Application List (PDF)
Is this lock suitable for fire-rated doors?
Yes - the leverset variant is certified for use on E-Core fire door assemblies to AS1530.4:2014, FRL -/60/30 (Jensen Hughes Report FAS220275, valid to 30/11/2027). The deadbolt variant is not fire rated. A fire door is a certified system - the lock certification must match the specific core type of the door it is fitted to. This lock is certified for E-Core and Pyropanel Maxi Pandor doorsets; if your door is Firecore, confirm compatibility before specifying. If you live in a Gold Coast apartment, your entry door is most likely a fire door - see our guide: What locks are compliant on Gold Coast apartment fire doors? Professional installation is required on all fire door applications. See also: Fire door types and smart lock certification · Buyers Guide Ch05: Fire door core types · Strata pre-purchase checklist
Yes - the leverset variant is certified for use on E-Core fire door assemblies to AS1530.4:2014, FRL -/60/30 (Jensen Hughes Report FAS220275, valid to 30/11/2027). The deadbolt variant is not fire rated. A fire door is a certified system - the lock certification must match the specific core type of the door it is fitted to. This lock is certified for E-Core and Pyropanel Maxi Pandor doorsets; if your door is Firecore, confirm compatibility before specifying. If you live in a Gold Coast apartment, your entry door is most likely a fire door - see our guide: What locks are compliant on Gold Coast apartment fire doors? Professional installation is required on all fire door applications. See also: Fire door types and smart lock certification · Buyers Guide Ch05: Fire door core types · Strata pre-purchase checklist
Can I use this lock with a 127mm backset latch?
No. The CEL-3IN1 is compatible with 60-70mm adjustable backset only. It cannot accommodate a 127mm latch. If your door currently has a 127mm latch, the latch will need to be changed to a 60 or 70mm unit before the CEL-3IN1 can be fitted. See: How to measure your lock backset - standard sizes and Buyers Guide Ch02: Backset for full guidance before ordering. Replacement latches: tubular latches and bolts for smart locks.
No. The CEL-3IN1 is compatible with 60-70mm adjustable backset only. It cannot accommodate a 127mm latch. If your door currently has a 127mm latch, the latch will need to be changed to a 60 or 70mm unit before the CEL-3IN1 can be fitted. See: How to measure your lock backset - standard sizes and Buyers Guide Ch02: Backset for full guidance before ordering. Replacement latches: tubular latches and bolts for smart locks.
What batteries should I use and how long do they last?
The manufacturer specifies 4 x AA Duracell Procell batteries, or equivalent good-quality alkaline batteries. Do not use lithium or rechargeable (NiMH) batteries - these can cause erratic operation or damage to the electronics. Battery life is approximately 5,000 openings, though this varies with usage frequency, ambient temperature, and battery brand. For a realistic lifespan guide in Australian conditions, see: How long do digital door locks last? Carbine's own battery and cable-routing advice is in the CEL-3in1 Troubleshooting FAQs (PDF).
The manufacturer specifies 4 x AA Duracell Procell batteries, or equivalent good-quality alkaline batteries. Do not use lithium or rechargeable (NiMH) batteries - these can cause erratic operation or damage to the electronics. Battery life is approximately 5,000 openings, though this varies with usage frequency, ambient temperature, and battery brand. For a realistic lifespan guide in Australian conditions, see: How long do digital door locks last? Carbine's own battery and cable-routing advice is in the CEL-3in1 Troubleshooting FAQs (PDF).
Additional Information
Guiding Code Function:
The guiding code feature allows random digits to be entered before or after the real PIN code. The lock ignores the extra digits and unlocks when the correct sequence is detected within the string. This prevents observers identifying the correct code through shoulder surfing, and masks wear patterns on frequently pressed keypad digits. The anti-peep PIN function is explained further in Buyers Guide Ch03: PIN access methods.
The guiding code feature allows random digits to be entered before or after the real PIN code. The lock ignores the extra digits and unlocks when the correct sequence is detected within the string. This prevents observers identifying the correct code through shoulder surfing, and masks wear patterns on frequently pressed keypad digits. The anti-peep PIN function is explained further in Buyers Guide Ch03: PIN access methods.
IP54 Rating - What It Covers and What It Doesn't:
IP54 means the exterior escutcheon is tested for dust protection and water spray resistance from any direction. This is suitable for sheltered entry positions where the door is not directly facing rain - for example, a covered entry or undercover porch. IP54 is not suitable for fully exposed gate positions or any door facing directly into weather. For those applications, look for IP65 or IP66. Critically, IP ratings do not cover UV degradation, salt air corrosion, or sustained heat - all significant factors in coastal Queensland. Confirm suitability for your specific location before purchasing. Full IP rating guide: Australian smart lock standards - IP ratings table · Coastal environments - Gold Coast specific
IP54 means the exterior escutcheon is tested for dust protection and water spray resistance from any direction. This is suitable for sheltered entry positions where the door is not directly facing rain - for example, a covered entry or undercover porch. IP54 is not suitable for fully exposed gate positions or any door facing directly into weather. For those applications, look for IP65 or IP66. Critically, IP ratings do not cover UV degradation, salt air corrosion, or sustained heat - all significant factors in coastal Queensland. Confirm suitability for your specific location before purchasing. Full IP rating guide: Australian smart lock standards - IP ratings table · Coastal environments - Gold Coast specific
Short-Stay and Airbnb Use:
The CEL-3IN1 is well suited to short-stay rental properties. Issue a unique PIN code to each guest for their stay and delete it at checkout - no key handover, no lockbox, no re-keying. Up to 25 separate user codes can be active simultaneously. For properties running back-to-back bookings via a property management system, the CEL2-BT-SL8MBKIT (Bluetooth-enabled variant) adds app-based code management. Full guidance: Airbnb smart locks in Australia - do you really need WiFi? and Buyers Guide Ch07: Airbnb & Short-Stay Rentals
The CEL-3IN1 is well suited to short-stay rental properties. Issue a unique PIN code to each guest for their stay and delete it at checkout - no key handover, no lockbox, no re-keying. Up to 25 separate user codes can be active simultaneously. For properties running back-to-back bookings via a property management system, the CEL2-BT-SL8MBKIT (Bluetooth-enabled variant) adds app-based code management. Full guidance: Airbnb smart locks in Australia - do you really need WiFi? and Buyers Guide Ch07: Airbnb & Short-Stay Rentals
Fire Door Installations - Compliance and Asbestos Risk:
The CEL-3IN1 leverset is certified for E-Core fire door assemblies. When specifying for fire door use, confirm that all other hardware in the assembly - hinges, seals, closer - is also fire rated and compatible with the certified configuration. The fire certificate covers the lock in the same door configuration as tested; modifications outside that configuration may void compliance.
If the fire door is in a Gold Coast apartment building, be aware of three asbestos risk windows that may require a pre-drilling assessment before any locksmith works on the door: pre-1990 construction, Korab/Pyrokor recall (1993-1998), and a current active alert for Pyropanel FRB board imported 2021-May 2025 (chrysotile asbestos contamination confirmed by the Australian Border Force). Terry's Locksmiths will assess asbestos risk before commencing any fire door work. See: Asbestos in Gold Coast apartment fire doors - the three risk windows · Ch11: Queensland asbestos regulations
The CEL-3IN1 leverset is certified for E-Core fire door assemblies. When specifying for fire door use, confirm that all other hardware in the assembly - hinges, seals, closer - is also fire rated and compatible with the certified configuration. The fire certificate covers the lock in the same door configuration as tested; modifications outside that configuration may void compliance.
If the fire door is in a Gold Coast apartment building, be aware of three asbestos risk windows that may require a pre-drilling assessment before any locksmith works on the door: pre-1990 construction, Korab/Pyrokor recall (1993-1998), and a current active alert for Pyropanel FRB board imported 2021-May 2025 (chrysotile asbestos contamination confirmed by the Australian Border Force). Terry's Locksmiths will assess asbestos risk before commencing any fire door work. See: Asbestos in Gold Coast apartment fire doors - the three risk windows · Ch11: Queensland asbestos regulations
Installation Quality and Lock Lifespan:
The three most common smart lock installation errors - wrong spindle position, mismatched backset, and door misalignment - all accelerate motor wear and reduce service life. A lock installed on a binding door is working harder on every operation cycle. If your door doesn't hang squarely and close smoothly without force, address that before fitting the lock. See: 3 common DIY smart lock installation mistakes and easy fixes and Buyers Guide Ch12: Installation & Troubleshooting · Advice and installation from Terry's
The three most common smart lock installation errors - wrong spindle position, mismatched backset, and door misalignment - all accelerate motor wear and reduce service life. A lock installed on a binding door is working harder on every operation cycle. If your door doesn't hang squarely and close smoothly without force, address that before fitting the lock. See: 3 common DIY smart lock installation mistakes and easy fixes and Buyers Guide Ch12: Installation & Troubleshooting · Advice and installation from Terry's
Credential Capacity Note:
The lock stores up to 25 RFID credentials and 25 user PIN codes as separate pools, plus 1 programming code and 4 single-use codes. The programming code is for lock configuration only and cannot be used as a regular access code. If 25 credentials are insufficient for your application, the CEL2-3IN1-SL8SNKIT increases this to 100 user codes or RFID connections. For a full explanation of how smart lock access methods and credential management work, see Buyers Guide Ch03: Access Methods comparison.
The lock stores up to 25 RFID credentials and 25 user PIN codes as separate pools, plus 1 programming code and 4 single-use codes. The programming code is for lock configuration only and cannot be used as a regular access code. If 25 credentials are insufficient for your application, the CEL2-3IN1-SL8SNKIT increases this to 100 user codes or RFID connections. For a full explanation of how smart lock access methods and credential management work, see Buyers Guide Ch03: Access Methods comparison.
Can I add a deadbolt to my door as well?
On a standard residential door: yes, provided the door prep allows a second hole without compromising the door. On a fire-rated door: no. Fire door standards (AS1905.1) permit only one locking penetration - a second deadbolt bores a 54mm hole which exceeds the maximum secondary penetration allowance, voids the fire door certification, and prevents the door from self-latching correctly. See: Secondary locks and the one-penetration principle on apartment fire doors · Ch11: AS1905.1 fire door hardware certification
On a standard residential door: yes, provided the door prep allows a second hole without compromising the door. On a fire-rated door: no. Fire door standards (AS1905.1) permit only one locking penetration - a second deadbolt bores a 54mm hole which exceeds the maximum secondary penetration allowance, voids the fire door certification, and prevents the door from self-latching correctly. See: Secondary locks and the one-penetration principle on apartment fire doors · Ch11: AS1905.1 fire door hardware certification
Warranty
Warranty
Carbine products are backed by Davcor Group Pty Ltd, the Australian manufacturer and owner of the Carbine brand, distributed locally through Lock and Key Co. Warranty periods vary by product category:
Carbine products are backed by Davcor Group Pty Ltd, the Australian manufacturer and owner of the Carbine brand, distributed locally through Lock and Key Co. Warranty periods vary by product category:
- Up to 15 years - mechanical hardware, door hardware, cabinet furniture, utility and window locks
- 10 years - padlocks and mechanical digital locks
- 5 years - cylinders and keys
- 12 months - electronic and digital locks, locksmith tools and supplies
Download PDF Resources
Carbine CEL-3IN1 Electronic Leverset - Product Brochure (PDF)
Four-page overview of the CEL-3IN1 digital leverset - touch keypad, RFID card and key override entry, 25 user codes and 25 RFID cards, 35-51mm doors, 60-70mm backset, batteries and the product codes.
Four-page overview of the CEL-3IN1 digital leverset - touch keypad, RFID card and key override entry, 25 user codes and 25 RFID cards, 35-51mm doors, 60-70mm backset, batteries and the product codes.
Carbine CEL-3IN1 Leverset - Specification Sheet (PDF)
One-page dimension drawing of the CEL-3IN1-SL8 leverset.
One-page dimension drawing of the CEL-3IN1-SL8 leverset.
Carbine CEL-3IN1 Leverset - Installation Guide (PDF)
Two-page installation sheet in English and French - parts and screws, door preparation template (54mm bore, 60mm or 70mm backset), strike and jamb dimensions, handle direction and cable connection.
Two-page installation sheet in English and French - parts and screws, door preparation template (54mm bore, 60mm or 70mm backset), strike and jamb dimensions, handle direction and cable connection.
Carbine CEL-3IN1 - User Guide (PDF)
Carbine's user guide for the CEL-3IN1 digital lock.
Carbine's user guide for the CEL-3IN1 digital lock.
Carbine CEL 3in1 Touchscreen Locks - RFID Application List (PDF)
Three-page RFID compatibility reference for the CEL 3in1 touchscreen locks - the MIFARE chip specification for Carbine's own cards and stickers, which Australian transit cards work (Opal, Go card, myki, SmartRider, metroCard, MyWay, Green Card) and why EMV payment chips do not, plus the supported NFC smartphone systems.
Three-page RFID compatibility reference for the CEL 3in1 touchscreen locks - the MIFARE chip specification for Carbine's own cards and stickers, which Australian transit cards work (Opal, Go card, myki, SmartRider, metroCard, MyWay, Green Card) and why EMV payment chips do not, plus the supported NFC smartphone systems.
Carbine CEL-3IN1 - FAQ Card (PDF)
One-page card with a QR code to Carbine's troubleshooting FAQs and three common installation tips shown right and wrong - battery installation, spindle alignment and cable installation.
One-page card with a QR code to Carbine's troubleshooting FAQs and three common installation tips shown right and wrong - battery installation, spindle alignment and cable installation.
Carbine CEL-3in1 and CEL-3in1-DB - Troubleshooting FAQs (PDF)
Problem, cause and fix tables for the CEL-3in1 leverset and deadbolt - unresponsive keypad, battery and cable routing tips, overheating, a lit # key or passage mode on pre-2021 locks, motor winding, programming problems, alignment and factory reset.
Problem, cause and fix tables for the CEL-3in1 leverset and deadbolt - unresponsive keypad, battery and cable routing tips, overheating, a lit # key or passage mode on pre-2021 locks, motor winding, programming problems, alignment and factory reset.
Carbine CEL-3IN1 - Fire Certification on E-Core (FAS220275 DHAR1.8 - Jensen Hughes, 2025) (PDF)
Jensen Hughes door hardware assessment for Davcor hardware in E-core doorsets, revision DHAR1.8, issued December 2025 and valid to 30 November 2027. Table 13 lists the CEL-3IN1-SL8SN at FRL -/60/30 with a 70mm backset.
Jensen Hughes door hardware assessment for Davcor hardware in E-core doorsets, revision DHAR1.8, issued December 2025 and valid to 30 November 2027. Table 13 lists the CEL-3IN1-SL8SN at FRL -/60/30 with a 70mm backset.
Carbine CEL-3IN1 - Fire Certification on Pyropanel Maxi Pandor (FRT220272 - Warringtonfire) (PDF)
Warringtonfire assessment of the CEL-3IN1 digital door lock in Maxi Pyropanel Pandor single and double leaf doorsets (nominally 48mm) - FRL -/60/30, valid to September 2028.
Warringtonfire assessment of the CEL-3IN1 digital door lock in Maxi Pyropanel Pandor single and double leaf doorsets (nominally 48mm) - FRL -/60/30, valid to September 2028.
Carbine CEL-3IN1 Leverset - Cable Replacement Instructions (PDF)
One-page, ten-step guide to replacing the cable in a CEL series leverset - removing the spindle, rose plate and touchscreen box, refitting the switch and reassembling.
One-page, ten-step guide to replacing the cable in a CEL series leverset - removing the spindle, rose plate and touchscreen box, refitting the switch and reassembling.
Carbine CEL-3IN1-SL8MBKIT - FAQ, Setup and Owner's Guide
Everything owners and installers ask about the CEL-3IN1 leverset, answered in one place. For general smart lock questions see Chapter 13: Smart Lock FAQ, and for the wider buying decision start at the Ultimate Smart Lock Buyer's Guide.
Access, Codes and Credentials
How many codes and cards can the CEL-3IN1 hold?
Twenty-five user PIN codes and twenty-five RFID credentials, held as two separate pools, plus four single-use codes and one programming code. The programming code configures the lock and is not an everyday access code. If twenty-five of each is not enough, the CEL2-3IN1 leverset raises it to one hundred codes or RFID connections.
Twenty-five user PIN codes and twenty-five RFID credentials, held as two separate pools, plus four single-use codes and one programming code. The programming code configures the lock and is not an everyday access code. If twenty-five of each is not enough, the CEL2-3IN1 leverset raises it to one hundred codes or RFID connections.
What is the default programming code, and do I have to change it?
The CEL-3IN1 ships with the programming code 12345678, and yes - change it before the lock goes into service. Hold the [SET] button for about a second, enter the programming code, then use menu 10 to set a new one. Note this is the CEL eight-digit convention: the CDL2 range uses a six-digit code instead, so do not follow a CDL2 guide on this lock. Full steps are in the CEL-3IN1 User Guide (PDF).
The CEL-3IN1 ships with the programming code 12345678, and yes - change it before the lock goes into service. Hold the [SET] button for about a second, enter the programming code, then use menu 10 to set a new one. Note this is the CEL eight-digit convention: the CDL2 range uses a six-digit code instead, so do not follow a CDL2 guide on this lock. Full steps are in the CEL-3IN1 User Guide (PDF).
How do I add or delete a user code or an RFID card?
Everything is done from programming mode on the keypad - there is no app and no PC software. Menu 20 adds a user code and menus 30, 40 and 41 delete one or all of them; menu 23 adds a user card and menus 33, 43 and 44 delete them. Menu 21 sets the four single-use codes. Each single-use code is four digits and works once. The User Guide (PDF) lists the full menu.
Everything is done from programming mode on the keypad - there is no app and no PC software. Menu 20 adds a user code and menus 30, 40 and 41 delete one or all of them; menu 23 adds a user card and menus 33, 43 and 44 delete them. Menu 21 sets the four single-use codes. Each single-use code is four digits and works once. The User Guide (PDF) lists the full menu.
What happens if someone keeps entering the wrong code?
The touchscreen disables itself temporarily after four consecutive incorrect entries. It is a standard anti-guessing measure - wait for the lockout to clear, or use an RFID credential or the mechanical key in the meantime.
The touchscreen disables itself temporarily after four consecutive incorrect entries. It is a standard anti-guessing measure - wait for the lockout to clear, or use an RFID credential or the mechanical key in the meantime.
What do the coloured indicators on the keypad mean?
Green means the code or card was accepted. Red means an incorrect entry, or that the lock is in programming mode. Yellow means the batteries are low and should be changed - see Battery, Power & Backup Access.
Green means the code or card was accepted. Red means an incorrect entry, or that the lock is in programming mode. Yellow means the batteries are low and should be changed - see Battery, Power & Backup Access.
Will my phone open the lock?
Most NFC-enabled Android phones that support MIFARE will, and Carbine lists the supported MIFARE systems in its RFID Application List (PDF). It is phone-dependent, so test yours before you commit. If it will not read, a Carbine MIFARE sticker on the back of the phone gives you the same tap-to-open result. Background on the technology: Chapter 03: RFID card and key fob access.
Most NFC-enabled Android phones that support MIFARE will, and Carbine lists the supported MIFARE systems in its RFID Application List (PDF). It is phone-dependent, so test yours before you commit. If it will not read, a Carbine MIFARE sticker on the back of the phone gives you the same tap-to-open result. Background on the technology: Chapter 03: RFID card and key fob access.
Can I use my Opal, Go card or myki as a key?
Yes. Australian transit cards are MIFARE (13.56MHz, ISO14443 Type A) and the CEL-3IN1 will enrol them - the Opal, Brisbane Go card, myki, SmartRider, Adelaide metroCard, Canberra MyWay and Hobart Green Card are all named in Carbine's own application list. Bank cards will not work: VISA payWave and Mastercard PayPass use EMV chips on ISO14443 Type B. Carbine only guarantees its own credentials; a third-party MIFARE card may work, but if its settings are later changed in another reader it can stop working on the lock.
Yes. Australian transit cards are MIFARE (13.56MHz, ISO14443 Type A) and the CEL-3IN1 will enrol them - the Opal, Brisbane Go card, myki, SmartRider, Adelaide metroCard, Canberra MyWay and Hobart Green Card are all named in Carbine's own application list. Bank cards will not work: VISA payWave and Mastercard PayPass use EMV chips on ISO14443 Type B. Carbine only guarantees its own credentials; a third-party MIFARE card may work, but if its settings are later changed in another reader it can stop working on the lock.
What is double authorisation, and when is it worth using?
Double authorisation makes the lock demand both a valid user code and a valid RFID card before it will open, instead of either one on its own. It is set from menu 99. Use it where a single credential is not enough - a medication room, a cash office, a store room in a shared tenancy. It roughly doubles the time each entry takes, so it is rarely right on a front door.
Double authorisation makes the lock demand both a valid user code and a valid RFID card before it will open, instead of either one on its own. It is set from menu 99. Use it where a single credential is not enough - a medication room, a cash office, a store room in a shared tenancy. It roughly doubles the time each entry takes, so it is rarely right on a front door.
What is the guiding code, and does it make my PIN weaker?
No - it makes it harder to observe. With the guiding code enabled (menu 50) you can type random digits before or after your real PIN and the lock still opens, because it looks for the correct sequence inside the string you entered. Anyone watching over your shoulder sees a long meaningless number, and the keypad does not develop a wear pattern on four particular digits. More on anti-peep entry: Chapter 03: PIN and keypad access.
No - it makes it harder to observe. With the guiding code enabled (menu 50) you can type random digits before or after your real PIN and the lock still opens, because it looks for the correct sequence inside the string you entered. Anyone watching over your shoulder sees a long meaningless number, and the keypad does not develop a wear pattern on four particular digits. More on anti-peep entry: Chapter 03: PIN and keypad access.
Can I set the lock to stay unlocked during opening hours?
Yes - that is passage mode. Hold [SET] for a second to switch the lock between auto-lock and passage; in passage mode the latch stays retracted and the door opens on the lever with no credential. Switch it back at the end of the day. On a busy reception or a workshop door this is usually the difference between a lock people accept and one they prop open.
Yes - that is passage mode. Hold [SET] for a second to switch the lock between auto-lock and passage; in passage mode the latch stays retracted and the door opens on the lever with no credential. Switch it back at the end of the day. On a busy reception or a workshop door this is usually the difference between a lock people accept and one they prop open.
How does the auto-lock timer work?
Auto-lock relocks the door a set number of seconds after it has been opened. The range is 5 to 99 seconds and it is off by default, so if you want it you have to turn it on in menu 70. Five seconds suits a front door; longer settings suit a door people carry things through.
Auto-lock relocks the door a set number of seconds after it has been opened. The range is 5 to 99 seconds and it is off by default, so if you want it you have to turn it on in menu 70. Five seconds suits a front door; longer settings suit a door people carry things through.
What is vacation mode?
Vacation mode (menu 60) suspends every user code and card at once without deleting any of them, leaving only the programming code and the mechanical key working. It is the right setting for a holiday house between bookings, or a property you are leaving empty - you turn the credentials back on when you return rather than re-enrolling everyone.
Vacation mode (menu 60) suspends every user code and card at once without deleting any of them, leaving only the programming code and the mechanical key working. It is the right setting for a holiday house between bookings, or a property you are leaving empty - you turn the credentials back on when you return rather than re-enrolling everyone.
Can I turn the keypad beep off?
Yes - menu 22 switches the keypad sound on or off. Worth doing on a bedroom or apartment entry door where late arrivals would otherwise wake the household.
Yes - menu 22 switches the keypad sound on or off. Worth doing on a bedroom or apartment entry door where late arrivals would otherwise wake the household.
I have lost the programming code. Can the lock be reset?
Yes, but only at the door and only by wiping it. Take out one battery, hold [SET] while you refit it, and keep holding until the long beep finishes. That restores the factory programming code of 1-2-3-4-5-6-7-8 and erases everything else the lock held, including every user code and card and the bolt direction, so the lock has to be reprogrammed and the handing re-established afterwards. Write the new programming code down somewhere other than the door.
Yes, but only at the door and only by wiping it. Take out one battery, hold [SET] while you refit it, and keep holding until the long beep finishes. That restores the factory programming code of 1-2-3-4-5-6-7-8 and erases everything else the lock held, including every user code and card and the bolt direction, so the lock has to be reprogrammed and the handing re-established afterwards. Write the new programming code down somewhere other than the door.
Fire Doors and Compliance
Which fire door cores is the CEL-3IN1 certified for?
Two: E-Core and Maxi Pyropanel Pandor, both at FRL -/60/30. The E-Core assessment is Jensen Hughes report FAS220275 revision DHAR1.8, which lists the CEL-3IN1-SL8SN lockset on a 70mm backset tubular latch. The Pyropanel assessment is Warringtonfire report FRT220272, covering single leaf (FR 2482) and double leaf (FR 2485) Maxi Pyropanel Pandor doorsets at a nominal 48mm. Certification is per core type - it does not carry across to a core that was not tested. See Chapter 05: fire door core types.
Two: E-Core and Maxi Pyropanel Pandor, both at FRL -/60/30. The E-Core assessment is Jensen Hughes report FAS220275 revision DHAR1.8, which lists the CEL-3IN1-SL8SN lockset on a 70mm backset tubular latch. The Pyropanel assessment is Warringtonfire report FRT220272, covering single leaf (FR 2482) and double leaf (FR 2485) Maxi Pyropanel Pandor doorsets at a nominal 48mm. Certification is per core type - it does not carry across to a core that was not tested. See Chapter 05: fire door core types.
My door is Firecore. Can I still use this lock?
Not on the CEL-3IN1's own certification - its reports cover E-Core and Pyropanel only. The Firecore assessment in the Carbine range belongs to the next generation: CEL2-3IN1-SL8MB-FRKIT and its Satin Nickel twin are assessed in Firecore doorsets under FRT230184, reaching -/120/30 on a 47mm TVC40 core. Identify the core from the compliance tag before you order anything - where to find the tag.
Not on the CEL-3IN1's own certification - its reports cover E-Core and Pyropanel only. The Firecore assessment in the Carbine range belongs to the next generation: CEL2-3IN1-SL8MB-FRKIT and its Satin Nickel twin are assessed in Firecore doorsets under FRT230184, reaching -/120/30 on a 47mm TVC40 core. Identify the core from the compliance tag before you order anything - where to find the tag.
Do the fire certificates expire?
They do. The E-Core assessment runs to 30 November 2027 and the Pyropanel assessment to 28 September 2028. A certifier signing off an installation will want a current report, so check the dates before you specify rather than at hand-over. The full certificate index is in Fire-rated smart lock certification.
They do. The E-Core assessment runs to 30 November 2027 and the Pyropanel assessment to 28 September 2028. A certifier signing off an installation will want a current report, so check the dates before you specify rather than at hand-over. The full certificate index is in Fire-rated smart lock certification.
Is the deadbolt version fire rated too?
No. Only the leverset carries the fire assessment. The deadbolt shares the electronics but not the tested configuration, and a deadbolt on an apartment fire door runs into the one-penetration rule anyway - see secondary locks and the one-penetration principle.
No. Only the leverset carries the fire assessment. The deadbolt shares the electronics but not the tested configuration, and a deadbolt on an apartment fire door runs into the one-penetration rule anyway - see secondary locks and the one-penetration principle.
Is the SL8 lever DDA compliant?
Carbine describes the SL8 lever as NCC compliant, and it is a return-to-door lever of the type AS1428.1 expects. Carbine does not quote an AS1428.1 certification for this model, so where a project genuinely has to demonstrate disability-access compliance, specify hardware that is certified to that standard rather than relying on the NCC statement. The requirements themselves are set out in Chapter 11: AS1428.1 and DDA compliance and Chapter 09: DDA, NDIS and accessibility.
Carbine describes the SL8 lever as NCC compliant, and it is a return-to-door lever of the type AS1428.1 expects. Carbine does not quote an AS1428.1 certification for this model, so where a project genuinely has to demonstrate disability-access compliance, specify hardware that is certified to that standard rather than relying on the NCC statement. The requirements themselves are set out in Chapter 11: AS1428.1 and DDA compliance and Chapter 09: DDA, NDIS and accessibility.
Should I worry about asbestos in an older apartment fire door?
Before anyone drills it, yes. Three risk windows are confirmed - pre-1990 construction, the Korab and Pyrokor recall between 1993 and 1998, and the active alert on Pyropanel FRB board imported between 2021 and May 2025. Terry's Locksmiths assesses the risk before starting work on any apartment fire door. Read the three confirmed risk windows and what to do next.
Before anyone drills it, yes. Three risk windows are confirmed - pre-1990 construction, the Korab and Pyrokor recall between 1993 and 1998, and the active alert on Pyropanel FRB board imported between 2021 and May 2025. Terry's Locksmiths assesses the risk before starting work on any apartment fire door. Read the three confirmed risk windows and what to do next.
Door Fit, Door Prep and Installation
Will the CEL-3IN1 fit my door?
If the door is 35 to 51mm thick, already has a standard 54mm bore, and takes a 60mm or 70mm backset latch, yes. The backset is adjustable between those two sizes on the supplied tubular latch. What it cannot do is 127mm - if your door has a 127mm backset latch, that latch has to be changed before this lock will fit. Measure first: Chapter 02: backset and door thickness.
If the door is 35 to 51mm thick, already has a standard 54mm bore, and takes a 60mm or 70mm backset latch, yes. The backset is adjustable between those two sizes on the supplied tubular latch. What it cannot do is 127mm - if your door has a 127mm backset latch, that latch has to be changed before this lock will fit. Measure first: Chapter 02: backset and door thickness.
What does the door preparation actually involve?
A 54mm bore through the face of the door, a 25mm hole through the edge for the latch, and the latch set to 60mm or 70mm backset. The supplied template marks the positions for 35, 40, 45 and 51mm door thicknesses, and the sheet also gives the strike and jamb dimensions. On a door that already carries a standard cylindrical lockset there is usually nothing new to drill. Full prep drawing: CEL-3IN1 Leverset Installation Guide (PDF).
A 54mm bore through the face of the door, a 25mm hole through the edge for the latch, and the latch set to 60mm or 70mm backset. The supplied template marks the positions for 35, 40, 45 and 51mm door thicknesses, and the sheet also gives the strike and jamb dimensions. On a door that already carries a standard cylindrical lockset there is usually nothing new to drill. Full prep drawing: CEL-3IN1 Leverset Installation Guide (PDF).
Does the lock have to be handed, or can the lever be turned around?
Handle direction is chosen during installation, not at the time of ordering - the installation sheet has a dedicated step for setting it before the two assemblies go on the door. Changing it afterwards means taking both the inside and outside levers off, so it is far quicker to get it right the first time. Work out the handing before you start: understanding door handing in Australia · Chapter 02: handing.
Handle direction is chosen during installation, not at the time of ordering - the installation sheet has a dedicated step for setting it before the two assemblies go on the door. Changing it afterwards means taking both the inside and outside levers off, so it is far quicker to get it right the first time. Work out the handing before you start: understanding door handing in Australia · Chapter 02: handing.
Will it clear my security screen door?
The exterior escutcheon projects 28mm from the door face, so you need at least that much clear air between the main door and the screen once both are closed - plus room for fingers on the keypad. Measure the gap before ordering, not after: the measurement that matters · Chapter 02: screen door clearance.
The exterior escutcheon projects 28mm from the door face, so you need at least that much clear air between the main door and the screen once both are closed - plus room for fingers on the keypad. Measure the gap before ordering, not after: the measurement that matters · Chapter 02: screen door clearance.
The lock is installed but the door will not lock properly. What is wrong?
Almost always one of three things, and almost never the lock. Wrong spindle position, a latch at the wrong backset, or a door that does not close squarely into its strike. A binding door makes the motor work harder on every cycle and shortens the life of the lock as well as annoying everyone who uses it. Carbine's own fault-finding tables cover unresponsive keypads, cable routing, motor winding and alignment: CEL-3in1 Troubleshooting FAQs (PDF). Also see the three common DIY mistakes and Chapter 12: symptom-to-fix table.
Almost always one of three things, and almost never the lock. Wrong spindle position, a latch at the wrong backset, or a door that does not close squarely into its strike. A binding door makes the motor work harder on every cycle and shortens the life of the lock as well as annoying everyone who uses it. Carbine's own fault-finding tables cover unresponsive keypads, cable routing, motor winding and alignment: CEL-3in1 Troubleshooting FAQs (PDF). Also see the three common DIY mistakes and Chapter 12: symptom-to-fix table.
Can I fit it myself, or do I need a locksmith?
On a standard timber door that already has a 54mm bore and the right backset, a competent DIYer can fit it with the supplied template. Get a licensed locksmith for a fire door (mandatory - the certification depends on the installation), for a door that needs new prep, and for anything aluminium or narrow. Chapter 12: when DIY is appropriate and when it is not · Advice and installation from Terry's.
On a standard timber door that already has a 54mm bore and the right backset, a competent DIYer can fit it with the supplied template. Get a licensed locksmith for a fire door (mandatory - the certification depends on the installation), for a door that needs new prep, and for anything aluminium or narrow. Chapter 12: when DIY is appropriate and when it is not · Advice and installation from Terry's.
The connecting cable has been damaged. Can it be replaced?
Yes - Carbine publishes a ten-step cable replacement procedure covering the spindle, rose plate, touchscreen box and inner switch. One warning before you start: Carbine states that once the electronic lock's original label is torn off to carry out a cable replacement, the lockset is no longer under warranty. If the lock is still within its warranty period, talk to us first rather than opening it. Procedure: CEL series lever cable replacement (PDF).
Yes - Carbine publishes a ten-step cable replacement procedure covering the spindle, rose plate, touchscreen box and inner switch. One warning before you start: Carbine states that once the electronic lock's original label is torn off to carry out a cable replacement, the lockset is no longer under warranty. If the lock is still within its warranty period, talk to us first rather than opening it. Procedure: CEL series lever cable replacement (PDF).
Power, Batteries and Backup Access
Which batteries, and how long do they last?
Four AA alkalines - Carbine specifies Duracell Procell or an equivalent good-quality alkaline - and roughly 5,000 openings from a set. A single-occupant front door will go a long time on that; an Airbnb or a staff door will not. This kit ships with the batteries included.
Four AA alkalines - Carbine specifies Duracell Procell or an equivalent good-quality alkaline - and roughly 5,000 openings from a set. A single-occupant front door will go a long time on that; an Airbnb or a staff door will not. This kit ships with the batteries included.
Can I use rechargeable or lithium AA batteries?
No. Carbine's own guidance is alkaline only - lithium and rechargeable NiMH cells sit at different voltages and can cause erratic operation or damage the electronics. The saving is not worth the callout.
No. Carbine's own guidance is alkaline only - lithium and rechargeable NiMH cells sit at different voltages and can cause erratic operation or damage the electronics. The saving is not worth the callout.
What happens if the batteries go completely flat?
You use the key. The CEL-3IN1 has a mechanical cylinder on the outside escutcheon and two C4 keys come in the box, so a dead lock is an inconvenience rather than a lockout. The lock warns you first - a yellow indicator appears while there is still usable life left, typically several days of normal use. Keep one override key somewhere other than inside the house: what to do when the battery dies · storing the override key.
You use the key. The CEL-3IN1 has a mechanical cylinder on the outside escutcheon and two C4 keys come in the box, so a dead lock is an inconvenience rather than a lockout. The lock warns you first - a yellow indicator appears while there is still usable life left, typically several days of normal use. Keep one override key somewhere other than inside the house: what to do when the battery dies · storing the override key.
Can the cylinder be keyed to my existing keys?
The lock is supplied with a C4 keyway six-pin PD-style cylinder, keyed to a five-pin key. Whether it can join your existing system depends on what that system is - bring your key in or send us a photo of it and we will tell you. The cylinder itself is a standard replaceable part: cylinders and barrels for smart locks.
The lock is supplied with a C4 keyway six-pin PD-style cylinder, keyed to a five-pin key. Whether it can join your existing system depends on what that system is - bring your key in or send us a photo of it and we will tell you. The cylinder itself is a standard replaceable part: cylinders and barrels for smart locks.
Weather, Coastal Conditions and Where Not to Fit It
Can I fit this on an exposed gate or a door that faces the weather?
Not an exposed one. IP54 means the outside escutcheon is dust protected and resists splashing water - fine under a porch, an awning or a covered entry, wrong for a gate standing in the open or a door that takes driving rain. For genuinely exposed positions you want IP65 or IP66 hardware instead. The rating also applies to the external module only; the inside unit houses the battery compartment and is an interior part. Chapter 11: IP ratings explained.
Not an exposed one. IP54 means the outside escutcheon is dust protected and resists splashing water - fine under a porch, an awning or a covered entry, wrong for a gate standing in the open or a door that takes driving rain. For genuinely exposed positions you want IP65 or IP66 hardware instead. The rating also applies to the external module only; the inside unit houses the battery compartment and is an interior part. Chapter 11: IP ratings explained.
We are a few streets from the beach. Will it survive the salt air?
Treat the IP rating as irrelevant to that question - ingress protection is a water and dust test, and it says nothing about salt-air corrosion, UV or sustained heat, which are the three things that actually shorten hardware life on the Gold Coast. Carbine does not publish a salt spray figure for the CEL-3IN1, so we will not quote one. What we can tell you is what we see in the field: a sheltered, shaded position and a wipe-down now and then make a large difference, and an exposed east-facing entry within a few hundred metres of the surf is hard on any electronic lock. Coastal environments - Gold Coast specific · why coastal Queensland is not gentle on locks.
Treat the IP rating as irrelevant to that question - ingress protection is a water and dust test, and it says nothing about salt-air corrosion, UV or sustained heat, which are the three things that actually shorten hardware life on the Gold Coast. Carbine does not publish a salt spray figure for the CEL-3IN1, so we will not quote one. What we can tell you is what we see in the field: a sheltered, shaded position and a wipe-down now and then make a large difference, and an exposed east-facing entry within a few hundred metres of the surf is hard on any electronic lock. Coastal environments - Gold Coast specific · why coastal Queensland is not gentle on locks.
Is it strong enough for a commercial door?
It is ANSI Grade 2 and Carbine positions the CEL range as medium use, which covers a small office, a tenancy store room, a community hall or a staff entry. For a high-traffic entrance cycling hundreds of times a day, look at the CEL2 generation instead - Carbine rates the CEL2 leversets at 500,000 mechanical and 250,000 electronic cycles. Usage frequency and cycle ratings.
It is ANSI Grade 2 and Carbine positions the CEL range as medium use, which covers a small office, a tenancy store room, a community hall or a staff entry. For a high-traffic entrance cycling hundreds of times a day, look at the CEL2 generation instead - Carbine rates the CEL2 leversets at 500,000 mechanical and 250,000 electronic cycles. Usage frequency and cycle ratings.
Choosing Between the Carbine Models
CEL-3IN1 or CEL2-3IN1 - which should I buy?
Buy the CEL-3IN1 if twenty-five codes and twenty-five cards is comfortably enough and your door core is E-Core or Pyropanel. Step up to the CEL2-3IN1 if you need a hundred credentials, a lower-profile escutcheon, or Firecore certification. Both fit the same 54mm hole and the same backset range, and retrofit plates exist for the changeover, so this is not a decision you are locked into forever. Side by side: the full Carbine range at a glance.
Buy the CEL-3IN1 if twenty-five codes and twenty-five cards is comfortably enough and your door core is E-Core or Pyropanel. Step up to the CEL2-3IN1 if you need a hundred credentials, a lower-profile escutcheon, or Firecore certification. Both fit the same 54mm hole and the same backset range, and retrofit plates exist for the changeover, so this is not a decision you are locked into forever. Side by side: the full Carbine range at a glance.
CEL-3IN1 or CDL2 - what is the difference?
RFID and the keypad. The CDL2 leverset is PIN and key only, with a membrane keypad rather than a touchscreen, and holds twenty user codes. The CEL-3IN1 adds cards, fobs, wristbands and NFC phones, a touchscreen, and the fire certification the CDL2 does not have. If nobody in the household will ever want to tap a card, the CDL2 is the value choice; if you are issuing credentials to guests, staff or contractors, the CEL-3IN1 earns its price.
RFID and the keypad. The CDL2 leverset is PIN and key only, with a membrane keypad rather than a touchscreen, and holds twenty user codes. The CEL-3IN1 adds cards, fobs, wristbands and NFC phones, a touchscreen, and the fire certification the CDL2 does not have. If nobody in the household will ever want to tap a card, the CDL2 is the value choice; if you are issuing credentials to guests, staff or contractors, the CEL-3IN1 earns its price.
I want to manage codes from my phone. Which Carbine do I need?
The CEL-3IN1 has no app - every code and card is added at the keypad. For app management, move to the CEL2-BT range: CEL2-BT-SL8MBKIT in Matte Black or CEL2-BT-SL8SNKIT in Satin Nickel. Be clear about what that does and does not buy you: Carbine Connect is Bluetooth only, with no gateway and no cloud, so you can manage the lock standing near it but you cannot let someone in from the other side of town. Carbine Connect: what it is and how it works · Chapter 15: smart lock app platforms.
The CEL-3IN1 has no app - every code and card is added at the keypad. For app management, move to the CEL2-BT range: CEL2-BT-SL8MBKIT in Matte Black or CEL2-BT-SL8SNKIT in Satin Nickel. Be clear about what that does and does not buy you: Carbine Connect is Bluetooth only, with no gateway and no cloud, so you can manage the lock standing near it but you cannot let someone in from the other side of town. Carbine Connect: what it is and how it works · Chapter 15: smart lock app platforms.
Is there a deadbolt version of this lock?
In the current range the RFID deadbolts are CEL2 generation: CEL2-3IN1-DBMBKIT and CEL2-3IN1-DBSNKIT. Remember that a deadbolt is a second lock, not a replacement for the latch - and on an apartment fire door it is usually not permitted at all.
In the current range the RFID deadbolts are CEL2 generation: CEL2-3IN1-DBMBKIT and CEL2-3IN1-DBSNKIT. Remember that a deadbolt is a second lock, not a replacement for the latch - and on an apartment fire door it is usually not permitted at all.
What does the KIT in the item code mean?
Batteries. CEL-3IN1-SL8MBKIT is the kit version and ships with four AA Duracell Procell cells; the non-KIT codes CEL-3IN1-SL8MB and CEL-3IN1-SL8SN are the same lock without them. Unless you already have good alkalines on the shelf, the kit is the one to buy.
Batteries. CEL-3IN1-SL8MBKIT is the kit version and ships with four AA Duracell Procell cells; the non-KIT codes CEL-3IN1-SL8MB and CEL-3IN1-SL8SN are the same lock without them. Unless you already have good alkalines on the shelf, the kit is the one to buy.
Related products, guides and chapters
Same lock, other finish: CEL-3IN1-SL8-SNKIT - Satin Nickel
Step up - CEL2-3IN1 (100 credentials, Firecore): CEL2-3IN1-SL8MBKIT · CEL2-3IN1-SL8SNKIT · CEL2-3IN1-SL8MB-FRKIT (fire door kit) · CEL2-3IN1-SL8SN-FRKIT (fire door kit)
Step up - CEL2-BT (adds the Carbine Connect app over Bluetooth): CEL2-BT-SL8MBKIT · CEL2-BT-SL8SNKIT · CEL2-BT-SL8MB-FRKIT · CEL2-BT-SL8SN-FRKIT
Deadbolt format: CEL2-3IN1-DBMBKIT · CEL2-3IN1-DBSNKIT · CEL2-BT-DBMBKIT (Bluetooth, no RFID) · CEL2-BT-DBSNKIT (Bluetooth, no RFID)
Entry level - PIN and key only: CDL2 Digital Lever Lock · CDL2 Digital Deadbolt
Spare credentials for this lock: CEL-RFID MIFARE card · CEL-RFID-FOB key fob · CEL-RFID-UFOB compact fob · CEL-RFID-WB silicone wristband · CEL-RFID-ST-C phone sticker
Browse by what matters to you: the full Carbine range · PIN code locks · card and fob locks · locks with a backup key · fire door locks · front door locks · internal door locks · RFID cards, fobs and tags · tubular latches · cylinders and barrels
Buyer's Guide chapters: Ch02 Measuring Your Door · Ch03 Access Methods · Ch04 Door Type Compatibility · Ch05 Fire Door Smart Locks · Ch07 Airbnb & Short-Stay · Ch10 Carbine brand profile · Ch11 Australian Standards · Ch12 Installation & Troubleshooting · Ch13 Smart Lock FAQ · Ch15 App Platforms
Blogs worth reading before you fit it: Carbine CEL & CDL range - complete buyer's guide · Fire door types & smart lock certification · Apartment fire doors - what is actually compliant · Asbestos in Gold Coast apartment fire doors · Measuring your lock backset · Understanding door handing in Australia · Check screen door clearance first · Mechanical key override on smart locks · How long do digital door locks last? · The realities of electronic door locks · Smart lock not locking? 3 common DIY mistakes · Airbnb smart locks - do you really need WiFi? · Carbine Connect platform guide
WHAT'S IN THE BOX TAB ============================================================ -->
What's in the Box - CEL-3IN1-SL8MBKIT
- 1 x exterior electronic module with touchscreen keypad and SL8 Matte Black lever
- 1 x interior module with SL8 Matte Black lever
- 1 x tubular latch (60-70mm adjustable backset)
- 2 x RFID key cards
- 2 x mechanical keys (C4 keyway)
- 4 x AA Duracell Procell batteries
- 1 x installation guide
- 1 x installation template
- Fixing screws and hardware
Note: RFID credentials (cards, FOBs, wristbands, and stickers) are available separately. Non-KIT variants (CEL-3IN1-SL8SN and CEL-3IN1-SL8MB) do not include batteries.
Carbine CEL-3IN1-SL8MBKIT - Real Installations by Terry's Locksmiths, Gold Coast
Installed by Terry's Locksmiths - grey industrial office door with acrylic weather cover, Molendinar
Office entry view - industrial premises, Molendinar
Grey metal commercial door - Molendinar
White service door with existing deadbolt - Nerang
White leadlight entry door - Benowa
White renovation access door - Burleigh Heads
Close-up detail - grey industrial door, Molendinar
Timber and glass residential entry door - Broadbeach Waters
Weather-covered commercial door - Molendinar
White residential entry door - Robina
Close-up keypad and lever detail - Robina
Polished timber and glass entry door - Palm Beach
White construction access door - Burleigh Heads
Grey industrial door - Molendinar
Timber and glass internal door - Varsity Lakes
Carbine CEL-3IN1-SL8MBKIT - Dimensions
Manufacturer dimensional drawing for the Carbine CEL-3IN1-SL8MBKIT. Exterior: 159.5mm H x 73mm W x 28mm D. Interior: 72.9mm W. Backset 60-70mm adjustable. Door thickness 35-51mm. Latch throw 12mm.
How to measure your backset · Buyers Guide Ch02: Measuring Your Door · Check your security screen clearance
Carbine CEL-3IN1-SL8MBKIT - Installation Specifications
Page 1 - Installation template, door preparation, and latch installation steps
Page 2 - Lock assembly installation, cable connection, and optional lever switching
For the full installation PDF, see the PDF Files tab. Professional installation is required on all fire-rated door applications. See: Buyers Guide Ch12: Installation & Troubleshooting · Advice and installation from Terry's
PDF Files - Carbine CEL-3IN1 Leverset
Carbine CEL-3IN1 Electronic Leverset - Product Brochure (PDF)
Four-page overview of the CEL-3IN1 digital leverset - touch keypad, RFID card and key override entry, 25 user codes and 25 RFID cards, 35-51mm doors, 60-70mm backset, batteries and the product codes.
Four-page overview of the CEL-3IN1 digital leverset - touch keypad, RFID card and key override entry, 25 user codes and 25 RFID cards, 35-51mm doors, 60-70mm backset, batteries and the product codes.
Carbine CEL-3IN1 Leverset - Specification Sheet (PDF)
One-page dimension drawing of the CEL-3IN1-SL8 leverset.
One-page dimension drawing of the CEL-3IN1-SL8 leverset.
Carbine CEL-3IN1 Leverset - Installation Guide (PDF)
Two-page installation sheet in English and French - parts and screws, door preparation template (54mm bore, 60mm or 70mm backset), strike and jamb dimensions, handle direction and cable connection.
Two-page installation sheet in English and French - parts and screws, door preparation template (54mm bore, 60mm or 70mm backset), strike and jamb dimensions, handle direction and cable connection.
Carbine CEL-3IN1 - User Guide (PDF)
Carbine's user guide for the CEL-3IN1 digital lock.
Carbine's user guide for the CEL-3IN1 digital lock.
Carbine CEL 3in1 Touchscreen Locks - RFID Application List (PDF)
Three-page RFID compatibility reference for the CEL 3in1 touchscreen locks - the MIFARE chip specification for Carbine's own cards and stickers, which Australian transit cards work (Opal, Go card, myki, SmartRider, metroCard, MyWay, Green Card) and why EMV payment chips do not, plus the supported NFC smartphone systems.
Three-page RFID compatibility reference for the CEL 3in1 touchscreen locks - the MIFARE chip specification for Carbine's own cards and stickers, which Australian transit cards work (Opal, Go card, myki, SmartRider, metroCard, MyWay, Green Card) and why EMV payment chips do not, plus the supported NFC smartphone systems.
Carbine CEL-3IN1 - FAQ Card (PDF)
One-page card with a QR code to Carbine's troubleshooting FAQs and three common installation tips shown right and wrong - battery installation, spindle alignment and cable installation.
One-page card with a QR code to Carbine's troubleshooting FAQs and three common installation tips shown right and wrong - battery installation, spindle alignment and cable installation.
Carbine CEL-3in1 and CEL-3in1-DB - Troubleshooting FAQs (PDF)
Problem, cause and fix tables for the CEL-3in1 leverset and deadbolt - unresponsive keypad, battery and cable routing tips, overheating, a lit # key or passage mode on pre-2021 locks, motor winding, programming problems, alignment and factory reset.
Problem, cause and fix tables for the CEL-3in1 leverset and deadbolt - unresponsive keypad, battery and cable routing tips, overheating, a lit # key or passage mode on pre-2021 locks, motor winding, programming problems, alignment and factory reset.
Carbine CEL-3IN1 - Fire Certification on E-Core (FAS220275 DHAR1.8 - Jensen Hughes, 2025) (PDF)
Jensen Hughes door hardware assessment for Davcor hardware in E-core doorsets, revision DHAR1.8, issued December 2025 and valid to 30 November 2027. Table 13 lists the CEL-3IN1-SL8SN at FRL -/60/30 with a 70mm backset.
Jensen Hughes door hardware assessment for Davcor hardware in E-core doorsets, revision DHAR1.8, issued December 2025 and valid to 30 November 2027. Table 13 lists the CEL-3IN1-SL8SN at FRL -/60/30 with a 70mm backset.
Carbine CEL-3IN1 - Fire Certification on Pyropanel Maxi Pandor (FRT220272 - Warringtonfire) (PDF)
Warringtonfire assessment of the CEL-3IN1 digital door lock in Maxi Pyropanel Pandor single and double leaf doorsets (nominally 48mm) - FRL -/60/30, valid to September 2028.
Warringtonfire assessment of the CEL-3IN1 digital door lock in Maxi Pyropanel Pandor single and double leaf doorsets (nominally 48mm) - FRL -/60/30, valid to September 2028.
Carbine CEL-3IN1 Leverset - Cable Replacement Instructions (PDF)
One-page, ten-step guide to replacing the cable in a CEL series leverset - removing the spindle, rose plate and touchscreen box, refitting the switch and reassembling.
One-page, ten-step guide to replacing the cable in a CEL series leverset - removing the spindle, rose plate and touchscreen box, refitting the switch and reassembling.
Carbine Warranty
Carbine is a flagship brand of Davcor Group Pty Ltd (ABN 95 003 562 598) - an Australian manufacturer, designer, and wholesale distributor of residential and commercial locking hardware. Engineered in collaboration with working locksmiths, Carbine products focus on high security, versatility, and ease of installation.
Davcor distributes Carbine through seven specialist divisions, including Lock and Key Co. - Davcor's dedicated trade distribution arm supplying locksmiths and the security industry across Australia, New Zealand, and beyond. Whether you purchased your Carbine product through Lock and Key Co., another trade channel, or directly through us, the same Davcor warranty applies.
All Carbine products are guaranteed by Davcor Group Pty Ltd to be free from defects in materials and workmanship from the date of original purchase, for the period applicable to the specific product category (refer to the Warranty Period table below). This warranty covers replacement of product only.
Warranty Summary
Warranty Periods by Product Category
Source: Davcor Warranty Against Defects - Appendix A. Warranty period runs from the date of original purchase.
How to Make a Claim
For full returns and warranty claim procedures, visit our Returns & Warranty page - this is kept up to date and is the authoritative reference for current claim steps.
- Contact Terry's Tradies Pty Ltd (the place of purchase) in writing as soon as the defect becomes apparent - and no later than 14 days after the end of the applicable warranty period.
- Include in your written claim: a description of the defect, the date of supply, your contact details, and satisfactory proof of purchase.
- Do not return the product until a return authorisation number has been issued by Davcor. If return is required, the product must be in its original, complete, and saleable packaging.
- Davcor will test and assess the product. No claim is valid unless Davcor has confirmed a defect is present.
- Once a valid claim is confirmed, Davcor will - at its discretion - repair the defect, replace the product, or supply an equivalent product. If repair or replacement cannot be completed within a reasonable time, you may request a full refund, provided the product has been returned.
Delivery inspection: If you believe a product is defective or incorrectly supplied at the time of delivery, telephone notice must be given within 72 hours of receipt, with written notice (including full particulars) within 14 days of the invoice date.
Exclusions
Australian Consumer Law
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure, and to compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. The Carbine/Davcor express warranty operates alongside and in addition to your rights under the Australian Consumer Law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure, and to compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. The Carbine/Davcor express warranty operates alongside and in addition to your rights under the Australian Consumer Law.
Confused? Overwhelmed? We get it.
Choosing the right smart lock can be genuinely tricky - door types, backsets, app platforms, compatibility with your existing hardware... there is a lot to consider. We have decades of experience fitting locks of all types, including smart locks, and we are happy to help.
Our expert recommendation service is free. Upload a few photos of your door and describe what you need, and one of our qualified locksmiths will give you a personalised recommendation.
Get Your Free Recommendation →How it works - three easy steps:
1. Upload photos
A few clear shots of your door, lock and frame - inside and out.
2. We assess
Our locksmith reviews your setup and requirements - door type, weather exposure, how you want to use it.
3. You get a recommendation
A personalised recommendation tailored to your door, budget and needs. No pressure, no upsell.
Also useful while you are deciding:
