Yale Unity Slim Stainless Steel Plate Strike Assembly - Magnet and Dust Box Included
The Yale Unity Slim Stainless Steel Plate Strike Assembly (part number YURSSL-STRIKE-01) is the complete jamb-side strike for a Yale Unity Slim Smart Lock. It is the part the lock's bolts actually enter, and it is supplied as an assembly rather than a bare plate.
Three things come in the pack and each does a different job. The stainless steel strike plate is the visible face on the jamb, 200mm tall with two bolt apertures. The dust box sits behind it inside the frame, giving the bolts somewhere clean to land and stopping debris collecting in the mortice. The magnet is included in the strike, so the lock's door position sensor has what it needs without any separate part.
Yale describes it as a generic strike suiting most standard applications. It is non-handed, so one part covers left and right hand doors, and it is made in New Zealand alongside the rest of the Unity Slim range.
Usually ships same day if ordered before 11am AEST (excludes Queensland public holidays).
Key Features
- Magnet included in the strike. The door position sensor magnet is built into the assembly, so no separate magnet housing is needed on a standard installation.
- Dust box included. Gives the bolts a clean landing inside the frame and keeps debris out of the mortice, which matters on a multipoint lock that throws bolts at two points.
- Stainless steel plate. The visible jamb face is stainless, which is the right specification for an exposed edge on a coastal or weather-facing door.
- Complete assembly, not a bare plate. Plate, dust box and magnet arrive together, so a strike replacement is one order rather than three.
- Non-handed. One part number covers left hand and right hand doors, with no handing decision at the point of order.
- Generic fit for standard applications. Yale specifies it as the default strike across the Unity Slim range rather than a variant tied to one configuration.
- Slim 1.5mm plate on a 200mm face. Thin enough to sit in a standard jamb rebate without packing, tall enough to serve both bolt positions from one plate.
- Made in New Zealand. Manufactured alongside the Unity Slim range and supplied in a Yale trade pack.
What's in the Box
- Stainless steel strike plate, 200mm
- Dust box
- Door position sensor magnet, included in the strike
No lock, no fixing screws and no packers. If the strike sits proud or shy of the frame face, add the Unity Slim Strike Packer in 2mm or 3mm. Escutcheon fixings are in the Unity Slim Screw Pack.
Suitable Uses
- New Unity Slim installations where the frame is being prepared fresh and the strike goes in with the lock.
- Replacing a damaged, worn or corroded strike on an installed Unity Slim.
- Retrofits where the existing strike is being removed rather than retained, so the whole jamb side is renewed at once.
- Service work where the magnet has failed or gone missing and replacing the complete assembly is cleaner than sourcing parts separately.
- Installer and locksmith van stock alongside the packers, screw pack and scar plate kit, so a Unity Slim job can be finished in one visit.
This is a Yale Unity Slim part. Its aperture positions are cut for the Unity Slim's bolt geometry and will not suit the Yale Unity Entrance, the Yale Unity Security Screen Door lock or another brand's lock. It is also not the right choice where the existing strike is staying in the frame - see the decision table below.
Available Finish Options
Stainless Steel
(This Product)
STK YURSSL-STRIKE-01
Finish selection does not affect functionality, compliance, or performance. The visible strike plate is stainless steel; the dust box that sits concealed inside the frame is black.
Which Strike Part Do You Need
Yale publishes two jamb-side parts with sequential numbers that do entirely different jobs, and they are routinely ordered the wrong way round. The question that separates them is simple: is the existing strike staying in the frame?
Unity Slim Trade Pack Accessories - Item Codes
Yale publishes the Unity Slim spares and accessories as a trade pack range. The full published list is below, with the parts stocked as their own listing linked through.
Fitting and Compatibility
The diagram below shows where the strike sits within a complete Unity Slim assembly. The highlighted item on the left is the jamb-side hardware; the remaining items are the internal escutcheon, spindle and fixing screws, the mortice lock body, and the external keypad escutcheon with lever.
- Fit the dust box first, then the plate. The box has to sit square in the frame mortice before the plate is screwed over it, or the bolts will foul on the box edge rather than entering cleanly.
- Check the bolts enter both apertures without touching. The Unity Slim throws at two points, so test both, not just the one at handle height.
- Confirm the lock reports a closed door before finishing. The magnet is in this strike, so if the sensor is not reading, strike alignment is the first thing to check.
- Pack the strike rather than forcing the door. If the plate sits proud or shy of the frame face, use a strike packer in 2mm or 3mm. Do not resolve a gap problem by over-tightening the fixings.
- Non-handed, so no left or right selection is required - but the plate is stepped, so check it is the right way up against the drawing before marking out.
- Test from a normal close, not a firm push. A strike that only works when the door is pulled hard against the seal will generate service calls once the weather changes.
Full Specifications
Dimensions
Frequently Asked Questions
Order this one if you are fitting a new strike or replacing the existing one, because the magnet is included. Order the Heavy Duty Magnet Housing Assembly only if the frame already carries a strike you intend to keep and the magnet alone needs positioning. The decision table above sets both cases out side by side.
Included. Yale specifies the magnet as part of this assembly, which is what makes it a complete jamb-side solution rather than a bare plate. That is also why a standard new installation does not need a separate magnet housing.
It lines the frame mortice behind the plate, giving the bolts a clean cavity to enter and keeping dust, render and insect debris out. On a multipoint lock that throws at two points, a fouled cavity is a common cause of a bolt that will not fully extend, so the box is doing real work rather than being packaging.
Yale describes it as a generic strike suiting most standard applications, and the plate is 200mm by 36mm at its widest and only 1.5mm thick. Check your existing mortice against the drawing above before ordering. If the plate sits proud or shy once fitted, the strike packer corrects it without re-routing.
The visible plate is stainless steel; the dust box behind it, hidden inside the frame, is black. The product name reflects the range colour rather than the plate finish. What you see on the jamb once it is fitted is the stainless plate. For why stainless matters on exposed edges near the coast, see our note on coastal environments and lock lifespan.
Additional Information
- The part numbers are misleading and the range is small enough to memorise. STRIKE-01 is the strike; STRIKE-02 is the magnet housing and is not a strike at all. Two sequential numbers, two entirely different jobs. Read the decision table before ordering either.
- The strike is where a multipoint lock is won or lost. The Unity Slim throws bolts at two points, so a strike that is fractionally out will bind one bolt while the other seats correctly. That reads as an intermittent fault rather than an alignment problem, which is why it is worth testing both positions from a normal close.
- A misaligned strike costs battery life, not just convenience. Every cycle where a bolt drags on the plate edge draws more current. If a Unity Slim is falling well short on battery life, check the jamb side before suspecting the lock. The Unity Slim battery and power section sets out what normal looks like.
- Order the jamb side as a set on a retrofit. A Unity Slim going into an existing frame often needs this strike plus a packer, and the door face may need the retrofit scar plate kit. Working the list out before the van leaves saves a second visit.
- Already own the lock? Setup, master code and factory reset are covered in our Yale Unity Slim troubleshooting and reset guide, including what to check when a door does not close or latch cleanly.
Warranty
Genuine Yale products bought new in Australia from authorised retailers are covered against defects in materials and workmanship for:
- Mechanical parts: 10 years
- Electrical and electronic components: 3 years (batteries excluded)
- Keys: 12 months
PDF Downloads
Yale Unity Slim Brochure (PDF)
Unity Slim Strike Assembly - Selection, Fitting and Troubleshooting
Everything below is specific to the Yale Unity Slim strike assembly and the jamb side of the installation. For the lock itself see the Yale Unity Slim product page, and for general installation faults see Chapter 12 - Installation and Troubleshooting.
Choosing between the two strike parts
Because Yale numbered them as a jamb-hardware pair rather than by function. YURSSL-STRIKE-01 is the actual strike - the plate the bolts enter, complete with dust box and magnet. YURSSL-STRIKE-02 is the heavy duty magnet housing, which carries only the door position sensor magnet and is fitted alongside a strike that is already in the frame. Sequential numbers, different jobs.
You would not normally need to. This assembly already carries a magnet, so adding a separate magnet housing to the same door duplicates the function. The two parts are alternatives for different jobs, not companions.
It depends on what is already in the frame. If the existing strike is a Unity Slim strike with its magnet intact, the fault is alignment rather than a missing part - check the door-to-jamb gap first. If the existing strike is an older or third-party strike with no magnet, the magnet housing is the fix. If the strike itself is damaged or corroded, replace it with this assembly and get a new magnet in the process.
Fitting the strike
Dust box into the frame mortice first, seated square and to full depth. Then the strike plate over it, aligned to the mortice edges. Then fixings, snug rather than fully tight. Close the door, test both bolt positions and the sensor reading, then tighten. Fitting the plate before the box is seated is the usual reason a bolt catches on an edge.
Usually not on a Unity Slim replacement, because this is the standard strike for the range and the plate is only 1.5mm thick. Coming from a different lock is a different question - measure your existing mortice against the drawing before ordering. Guidance on measuring a door and its hardware is in Chapter 02.
Pack the mortice rather than forcing the door or over-tightening. The Unity Slim strike packer comes in 2mm and 3mm for exactly this. A proud strike stops the door seating against the seal, which then reads as a door-ajar fault at the lock even though the sensor and magnet are both fine.
Troubleshooting
Very likely. A multipoint lock is far less forgiving of a strike that is fractionally out of square than a single-point lock is, because both bolt positions have to line up from the same plate. Check each aperture separately with the door closed, and look for burnishing on the plate edge where a bolt has been dragging.
Yes. Every cycle where a bolt drags against the plate edge draws more current than a clean throw, and the lock has no way to tell you that mechanically. If battery life is well short of expectation and the lock is otherwise healthy, the jamb side is worth checking before anything is replaced. Chapter 12 covers this under symptom-to-fix troubleshooting.
The plate is stainless, which is the right specification for an exposed jamb edge, but no strike is immune to salt and grit working into the mortice behind it. The dust box helps by keeping the cavity clean. If a strike is being replaced early on a coastal installation, it is worth checking whether debris in the mortice was the real cause. See coastal environments and lock lifespan.
Related products, guides and chapters
Host lock: Yale Unity Slim Smart Lock with Multipoint Locking System (see its multipoint locking section, configuration matrix and accessories).

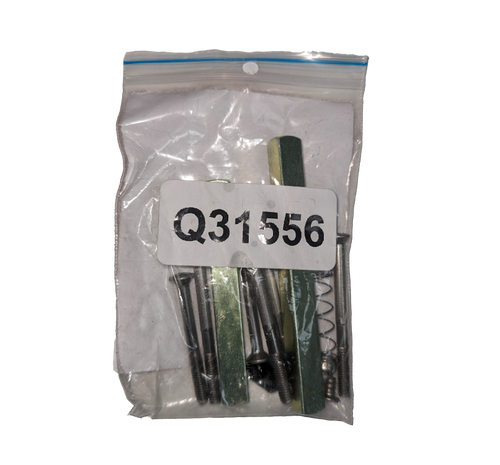

Unity Slim spares: Heavy Duty Magnet Housing Assembly | Strike Packer | Screw Pack | Retrofit Scar Plate Kit.
