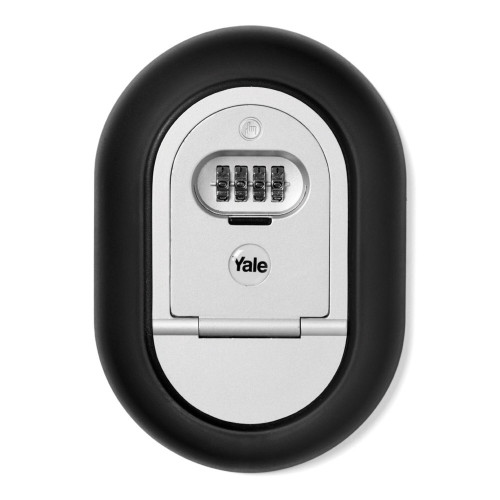

Yale Y500/187/1 Combination Key Access Safe
The Yale Y500/187/1 Combination Key Access Safe is a wall-mounted key box that stores a spare set of keys behind a resettable 4-digit combination lock. It lets family members, carers, tradespeople or guests collect a key without a physical handover, and without leaving keys under the mat.
The die-cast body is protected by a tough impact-resistant plastic shroud and a sliding cover that conceals the dials and improves weather resistance, so the safe suits sheltered outdoor mounting as well as indoor use. The internal compartment is large enough to hold several keys on the built-in hook.
Access is purely mechanical: a 4-wheel combination lock you can reset to your own code at any time. There are no batteries, no app and nothing to connect, so there is nothing to go flat and no account to manage.
Estimated Warehouse Dispatch: Usually ships in 3 business days.
Key Features
- Resettable 4-digit combination lock - set and change your own code, no keys to cut or hand over
- Strong die-cast body with a tough impact-resistant plastic shroud
- Sliding cover conceals the dials and improves weather resistance for sheltered outdoor use
- Large internal compartment with a built-in hook - holds several keys
- Wall-mounted design with concealed fixings for a tidy, tamper-discouraging install
- Fixing pack (screws) supplied - the safe body doubles as the drilling template
Lock Layout
Slide the cover down to reveal the four dials, turn them to your code and align each number with the guide line, then press the release button to open the compartment door. To secure it again, close the door, scramble the dials and slide the cover back up.
Part layout: release button, guide line, sliding cover and compartment door.
What's in the Box
- 1 x Yale Y500/187/1 Combination Key Access Safe
- 1 x Fixing pack (wall screws)
Suitable Uses
- Spare key access for family members, children or carers
- Rental, holiday-home and short-stay guest key handover
- Controlled access for tradespeople, cleaners and service visits
- Secure spare-key storage in a sheltered outdoor or garage location
Weather-resistant construction
The die-cast body, plastic shroud and sliding cover give the Y500/187/1 weather-resistant protection for outdoor mounting. Keep the cover closed when the safe is not in use to maximise weather resistance and to conceal the dials. Yale does not publish a formal IP rating for this product, so in fully exposed or coastal positions mount it in a sheltered spot (under an eave or porch) and wipe it down periodically. See our notes on coastal key-safe maintenance and IP ratings explained.
The die-cast body, plastic shroud and sliding cover give the Y500/187/1 weather-resistant protection for outdoor mounting. Keep the cover closed when the safe is not in use to maximise weather resistance and to conceal the dials. Yale does not publish a formal IP rating for this product, so in fully exposed or coastal positions mount it in a sheltered spot (under an eave or porch) and wipe it down periodically. See our notes on coastal key-safe maintenance and IP ratings explained.
Available Finish Options
Black / Silver
(This Product)
STK Y500/187/1
Supplied as a single two-tone black-and-silver finish (black shroud, silver operating face). Finish selection does not affect functionality, compliance, or performance.
Full Specifications
Dimensions
Overall size: 130 mm wide x 187 mm high x 39 mm deep.
Cyber security declaration
The Y500/187/1 is a fully mechanical product. It contains no electronics, firmware, wireless radios or app, collects no personal data and never connects to a network. It therefore has no remote or cyber attack surface - the only way to open it is the physical combination. This makes it a useful choice where you want dependable key access without any digital footprint.
The Y500/187/1 is a fully mechanical product. It contains no electronics, firmware, wireless radios or app, collects no personal data and never connects to a network. It therefore has no remote or cyber attack surface - the only way to open it is the physical combination. This makes it a useful choice where you want dependable key access without any digital footprint.
Frequently Asked Questions
What is the factory code and can I change it?
It ships on the preset combination 0-0-0-0. You reset it to your own 4-digit code in seconds using the internal reset lever - open the door, hold the reset lever, dial your new code, then return the lever. Full steps are in the FAQ tab and the user guide.
It ships on the preset combination 0-0-0-0. You reset it to your own 4-digit code in seconds using the internal reset lever - open the door, hold the reset lever, dial your new code, then return the lever. Full steps are in the FAQ tab and the user guide.
How many keys does it hold?
The compartment is a large internal cavity with a hook and comfortably holds several standard house or office keys. Bulky fobs or car keys with large transponder heads take up more room, so allow for that.
The compartment is a large internal cavity with a hook and comfortably holds several standard house or office keys. Bulky fobs or car keys with large transponder heads take up more room, so allow for that.
Can it be mounted outside?
Yes - it is designed for weather-resistant outdoor mounting, and the sliding cover helps shield the dials from the elements. Yale does not publish an IP rating for it, so in fully exposed or coastal spots mount it under cover and wipe it down periodically.
Yes - it is designed for weather-resistant outdoor mounting, and the sliding cover helps shield the dials from the elements. Yale does not publish an IP rating for it, so in fully exposed or coastal spots mount it under cover and wipe it down periodically.
How is it fixed and are the fixings included?
It wall-mounts through concealed fixing points and a fixing pack (screws) is supplied. You use the safe body itself as the marking template. For masonry, add wall anchors (not always supplied). A Phillips screwdriver, level and drill are the only tools needed.
It wall-mounts through concealed fixing points and a fixing pack (screws) is supplied. You use the safe body itself as the marking template. For masonry, add wall anchors (not always supplied). A Phillips screwdriver, level and drill are the only tools needed.
Is this a smart or Bluetooth key safe?
No. The Y500/187/1 is purely mechanical - no batteries, app or connectivity. If you need remote code changes, one-time guest codes or an access log (for example for busy Airbnb turnover), a Bluetooth key safe or smart lock is the better fit - see the alternatives in the FAQ tab.
No. The Y500/187/1 is purely mechanical - no batteries, app or connectivity. If you need remote code changes, one-time guest codes or an access log (for example for busy Airbnb turnover), a Bluetooth key safe or smart lock is the better fit - see the alternatives in the FAQ tab.
Additional Information
- Record your combination and store it somewhere separate from the safe - there is no key override, so a forgotten code means the safe has to be forced.
- Always scramble the dials and slide the cover closed after use. The compartment door stays unlocked until the dials are scrambled.
- Treat it as convenience key access, not a high-security safe or a substitute for a monitored strongbox - it deters casual access rather than a determined attack.
- Mount it in a discreet, sheltered position. Out of direct line of sight and weather is best for both security and longevity.
- For rentals and short-stays where codes change often, compare a Bluetooth or smart key safe - our key-storage guide covers when a mechanical box is enough and when to step up.
Yale Warranty
Genuine Yale products bought new in Australia from authorised retailers are covered against defects in materials and workmanship for:
Genuine Yale products bought new in Australia from authorised retailers are covered against defects in materials and workmanship for:
- Mechanical parts: 10 years
- Electrical and electronic components: 3 years (batteries excluded)
- Keys: 12 months
Finishes, cosmetic wear, batteries, normal wear and tear, misuse, unauthorised modification and corrosion (including coastal air and salt spray) are excluded. Proof of purchase is required for all claims.
This warranty is in addition to your rights under the Australian Consumer Law.
PDF Downloads
Download PDF Resources
Yale Safes Catalogue (PDF)
Yale Safes Catalogue (PDF)
Yale Y500/187/1 - FAQ, Setup and Owner's Guide
Everything owners and installers ask about the Yale Y500/187/1 combination key safe - how to open it, set your own code, mount it and keep it working outdoors. For wider key-storage advice see our secure key storage guide and the Buyer's Guide.
Opening & Daily Use
How do I open the key safe?
Slide the cover downwards to expose the four dials. Turn each dial so your code lines up with the guide line, then press the release button - the compartment door pops open. Take or return the key, close the door, scramble the dials to random numbers, and slide the cover back up.
Slide the cover downwards to expose the four dials. Turn each dial so your code lines up with the guide line, then press the release button - the compartment door pops open. Take or return the key, close the door, scramble the dials to random numbers, and slide the cover back up.
Why won't the door lock again?
The compartment door stays open until you scramble the combination dials. Turning the dials away from your code is what re-locks it. Always finish by scrambling the dials and closing the cover - otherwise the safe is left unlocked.
The compartment door stays open until you scramble the combination dials. Turning the dials away from your code is what re-locks it. Always finish by scrambling the dials and closing the cover - otherwise the safe is left unlocked.
What is the code out of the box?
From the factory the combination is 0-0-0-0. Change it to your own code before you put keys in it - see the next question.
From the factory the combination is 0-0-0-0. Change it to your own code before you put keys in it - see the next question.
Setting the Combination & Security
How do I set my own combination?
Open the compartment door, then push the reset lever inside to the left and down and hold it there. With the lever held, turn the dials to the new 4-digit code you want. Push the reset lever back up into its original position. Close the door and scramble the dials to conceal the code. Your new combination is set.
Open the compartment door, then push the reset lever inside to the left and down and hold it there. With the lever held, turn the dials to the new 4-digit code you want. Push the reset lever back up into its original position. Close the door and scramble the dials to conceal the code. Your new combination is set.
What if I forget the code?
There is no key override on this model, so a forgotten combination means the safe has to be drilled or forced open. Record your code and keep it somewhere separate and secure - never write it on or near the safe.
There is no key override on this model, so a forgotten combination means the safe has to be drilled or forced open. Record your code and keep it somewhere separate and secure - never write it on or near the safe.
How secure is it?
It is a convenience key box, not a high-security safe. The die-cast body, concealed fixings and cover deter casual and opportunistic access, but any surface-mounted key safe can be attacked with enough time and tools. Mount it out of sight, scramble the dials every time, and do not store keys to high-value assets in it. Our guide explains the practical trade-offs and the relay-attack risk of storing car keys.
It is a convenience key box, not a high-security safe. The die-cast body, concealed fixings and cover deter casual and opportunistic access, but any surface-mounted key safe can be attacked with enough time and tools. Mount it out of sight, scramble the dials every time, and do not store keys to high-value assets in it. Our guide explains the practical trade-offs and the relay-attack risk of storing car keys.
Capacity & Keys
How many keys fit inside?
The internal compartment is generous and includes a hook. It comfortably holds several standard house, office or padlock keys. Large car keys with transponder heads or bulky fobs use more space, so plan for fewer of those.
The internal compartment is generous and includes a hook. It comfortably holds several standard house, office or padlock keys. Large car keys with transponder heads or bulky fobs use more space, so plan for fewer of those.
How big is it?
130 mm wide by 187 mm high by 39 mm deep, weighing about 0.64 kg. See the Dimensions tab for the drawing.
130 mm wide by 187 mm high by 39 mm deep, weighing about 0.64 kg. See the Dimensions tab for the drawing.
Weather & Location
Is it OK in the rain?
It has weather-resistant construction and the sliding cover shields the dials, so it copes with normal outdoor exposure when the cover is kept closed. There is no published IP rating, so for fully exposed or coastal positions mount it under an eave or porch and wipe it down from time to time. See coastal maintenance tips.
It has weather-resistant construction and the sliding cover shields the dials, so it copes with normal outdoor exposure when the cover is kept closed. There is no published IP rating, so for fully exposed or coastal positions mount it under an eave or porch and wipe it down from time to time. See coastal maintenance tips.
Where should I mount it?
Pick a spot that is easy for authorised people to reach but not obvious from the street - beside or behind a door, in a porch, carport or garage. A discreet, sheltered position is best for both security and longevity.
Pick a spot that is easy for authorised people to reach but not obvious from the street - beside or behind a door, in a porch, carport or garage. A discreet, sheltered position is best for both security and longevity.
Installation & Setup Tips
What tools do I need to fit it?
A pencil or marker, a Phillips head screwdriver, a spirit level, and a drill with the right bit. For masonry or brick, add suitable wall anchors and a hammer. The fixing screws are supplied in the box.
A pencil or marker, a Phillips head screwdriver, a spirit level, and a drill with the right bit. For masonry or brick, add suitable wall anchors and a hammer. The fixing screws are supplied in the box.
What is the best way to install it?
Open the compartment door first so the fixing points are exposed. Hold the safe on the wall, use the level to check it sits vertical, then mark the screw positions through the body - the safe is its own template. Drill, insert anchors if you are into masonry, reposition the safe and drive the screws home. Finish by closing the door, scrambling the dials and closing the cover.
Open the compartment door first so the fixing points are exposed. Hold the safe on the wall, use the level to check it sits vertical, then mark the screw positions through the body - the safe is its own template. Drill, insert anchors if you are into masonry, reposition the safe and drive the screws home. Finish by closing the door, scrambling the dials and closing the cover.
Any first-use checklist?
1) Reset the factory 0-0-0-0 code to your own combination. 2) Test opening and closing a few times before mounting. 3) Mount it level and sheltered. 4) Record the code somewhere safe and separate. 5) Brief anyone who needs access, and remind them to scramble the dials and close the cover each time.
1) Reset the factory 0-0-0-0 code to your own combination. 2) Test opening and closing a few times before mounting. 3) Mount it level and sheltered. 4) Record the code somewhere safe and separate. 5) Brief anyone who needs access, and remind them to scramble the dials and close the cover each time.
Suitability & Alternatives
Who is this best for?
Households sharing a spare key, carers and support workers, holiday-home and rental owners with a fixed code, and trades or cleaners needing supervised access. It is ideal where the code changes rarely and you want a simple, battery-free box.
Households sharing a spare key, carers and support workers, holiday-home and rental owners with a fixed code, and trades or cleaners needing supervised access. It is ideal where the code changes rarely and you want a simple, battery-free box.
When should I choose something else?
If you need to change codes remotely, issue time-limited or one-time guest codes, or see an access log - typical for high-turnover Airbnb - look at a Bluetooth or smart key safe or a smart lock instead. If you want a similar mechanical wall box in a different style, these are close alternatives:
If you need to change codes remotely, issue time-limited or one-time guest codes, or see an access log - typical for high-turnover Airbnb - look at a Bluetooth or smart key safe or a smart lock instead. If you want a similar mechanical wall box in a different style, these are close alternatives:
- Carbine Wall Mounted Key Safe - Dial with cover (48-hour salt-spray tested)
- ABUS Key Garage KG787BIG (large-capacity wall-mount dial)
- ABUS Key Garage KG747LC (push-button wall-mount)
- Burg-Wachter Key Safe 30 (dial with shutter flap)
- FK Surf Deluxe Keysafe (portable, with RFID signal-blocking wallet)
Related products, guides and chapters
- Key-safe alternatives: Carbine Wall Key Safe (dial, cover) · ABUS Key Garage KG787BIG · ABUS Key Garage KG747LC · Burg-Wachter Key Safe 30 · FK Surf Deluxe Keysafe
- Guides & blogs: Secure key storage guide · How a mechanical key safe works
- Buyer's Guide chapters: Ch 07 - Airbnb & Short-Stay · Ch 10 - Yale Brand Profile · Ch 11 - IP Ratings · Ch 13 - FAQ
- Browse the range: All Yale products
Yale Y500/187/1 - Dimensions
Overall size: 130 mm wide x 187 mm high x 39 mm deep.
Yale Y500/187/1 - Product Brochure
Yale Safes Catalogue - Key Access page (Y500/187/1).
Download PDF Resources
Yale Safes Catalogue (PDF)
Yale Safes Catalogue (PDF)
Yale Warranty
Yale branded products are manufactured and warranted in Australia by ASSA ABLOY Australia Pty Ltd. Coverage is tiered by component type - mechanical parts, electrical and electronic components, and keys each carry their own warranty period. The summary below sets out each period, what is excluded, and how to make a claim through Gold Coast Smart Locks.
This warranty applies to genuine Yale products purchased new in Australia from ASSA ABLOY or its authorised resellers. It operates in addition to your rights under the Australian Consumer Law.
Warranty Summary
How to Make a Claim
Start your claim with us
For full returns and warranty claim procedures, visit our Returns & Warranty page - this is kept up to date and is the authoritative reference for current claim steps.
For full returns and warranty claim procedures, visit our Returns & Warranty page - this is kept up to date and is the authoritative reference for current claim steps.
- Keep your proof of original purchase (invoice or receipt).
- Contact Gold Coast Smart Locks - operated by Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries - as your authorised retailer, and follow the steps on our Returns & Warranty page.
- Return the product securely packed to protect it in transit, together with your proof of purchase and your name, address, email and phone number.
- ASSA ABLOY assesses the claim. Where the warranty applies, they will (at their option) repair the product, replace it with the same or closest equivalent Yale product, or refund the price you paid.
Claims made directly to ASSA ABLOY require a Case Number from their Customer Service Department before goods are returned - products sent back without a Case Number may not be accepted. Costs of returning a product are the customer's responsibility.
What Is Not Covered
- Normal wear and tear.
- Misuse, abuse, accident, or use outside Yale's published technical specifications.
- Improper maintenance or neglect, or failure to follow ASSA ABLOY's care and maintenance recommendations.
- Use of batteries other than those specified; batteries themselves are not covered.
- Unauthorised alteration, modification or repair by anyone other than ASSA ABLOY authorised personnel.
- Custom orders made to components or specifications supplied by someone other than ASSA ABLOY.
- Goods that were not new when purchased, second-hand goods, or products not originally sold in Australia through ASSA ABLOY or an authorised reseller.
- Products with brands, marks, plates, numbers or other ASSA ABLOY information defaced or removed.
- Use of substitute, replacement or non-genuine ASSA ABLOY parts or cylinders.
- Corrosive exposure, including vapours, chemicals, abrasive compounds, contamination, pollution, coastal air, salt spray and high humidity.
- Removal, refitment or replacement of products, and any associated charges.
