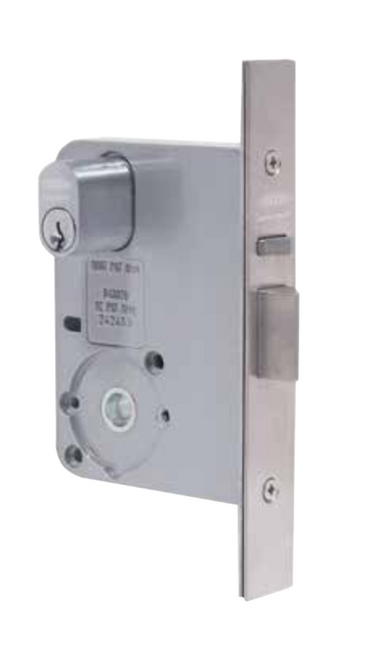

Lockwood Synergy 3570 Series Cylinder Mortice Nightlatch - Satin Chrome or Chrome Plate
The Lockwood Synergy 3570 Series Nightlatch is a heavy duty cylinder mortice lock designed for industrial, commercial, institutional, and public buildings. Operated by key outside and turnknob or key inside, the nightlatch locks automatically when the door is closed. Built on the rigorous Lockwood Synergy 3570 platform, it combines strength, durability, and fire-safety compliance.
Fire tested up to 4 hours in accordance with Australian Standard AS1905.1-2005. Fire performance is doorset-dependent and system-based - see our fire door buyers guide and the AS1905.1 test-report reference before specifying.
Key Features
- Nightlatch locks automatically when the door is closed.
- Operated by key outside, turnknob or key inside.
- Heavy duty Synergy 3570 Series for high-use environments.
- High purity zinc alloy case with stainless steel cover plates.
- 15mm stainless steel deadlatch bolt with auxiliary bolt for added security.
- Fire tested up to 4 hours to AS1905.1-2005.
- Durability Level D8 and Security Level S7 (S8 available on request) per AS4145.2:2008.
- Compatible with most Lockwood escutcheons, furniture, and electric strikes.
Full Specifications
Keying
- Bump-resistant 5-pin tumbler cylinder.
- Supplied individually keyed with 2 keys.
- Approximately 78,000 key combinations.
- Restricted and master keying available.

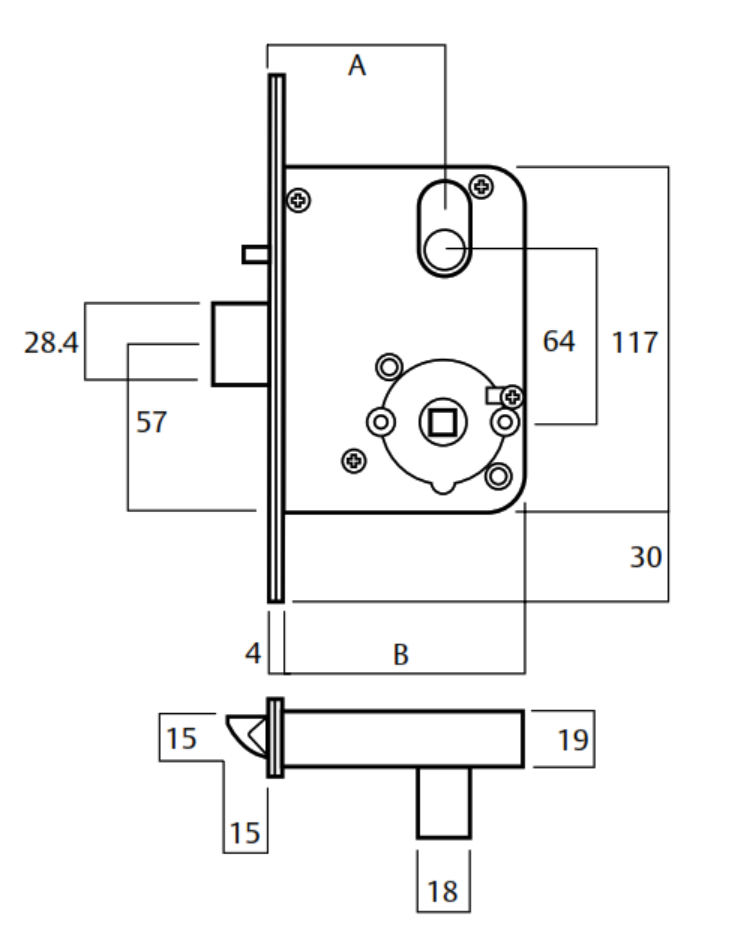

Mortice Lock Body - Dimensions
Faceplate & Strike Plate - Dimensions
Available Finish Options
This listing is supplied in Satin Chrome (3570SC) or Chrome Plate (3570CP). Polished Brass (PB) is available on request.
Nightlatch Variants
Related Synergy 3570 Series Locks
The Synergy 3570 platform is available in a range of functions. If a different function is required, these locks share the same series and door preparation:
What's in the Box
- Lockwood Synergy 3570 nightlatch body
- Standard 5-pin brass cylinder set (individually keyed, 2 keys)
- Mounting accessories
- Fixing screws
- Installation instructions
Door furniture and escutcheons are ordered separately. Compatible with most Lockwood escutcheons, furniture, and electric strikes.
Suitable Uses
- Heavy-traffic doors in schools, hospitals, hotels, and clubs
- Industrial and commercial entry points
- Institutional or public-building security doors
- Fire-rated door assemblies requiring a heavy-duty mortice nightlatch
- Doors requiring automatic locking on closing with key outside and turnknob inside
Installation Tips
- Confirm the backset before ordering - 60mm is standard, with 89mm and 127mm available for wider stiles. Our backset measurement guide shows how.
- Standard door thickness range is 32-50mm (35.5mm for SCEC applications). For doors thicker than 50mm, a 3570 Series extension spindle (50-75mm) is available.
- Door furniture and escutcheons are ordered separately - the lock is compatible with most Lockwood escutcheons, furniture, and electric strikes.
- For fire-door installations, confirm the complete doorset assembly is part of a compliant fire-rated system. On existing apartment fire doors, check for asbestos risk before drilling.
- As a nightlatch is a self-latching secondary lock, review the one-penetration principle where fitting to strata or fire doors.
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship under the Lockwood 25 Year Mechanical Warranty (conditions apply). Cosmetic finishes, normal wear and tear, misuse, unauthorised modification, corrosion and labour or freight costs are excluded.
